19140 Series

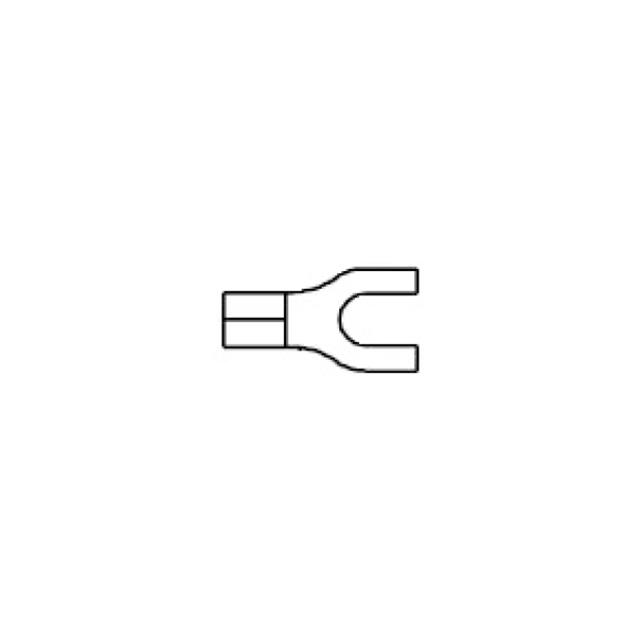

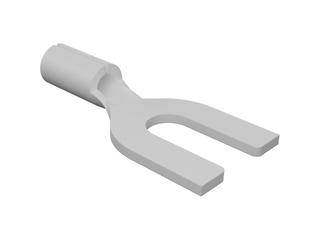

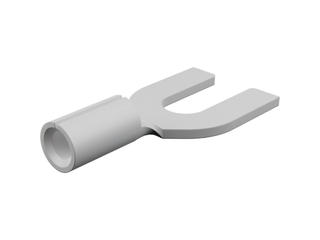

Krimptite Spade Tongue Terminal for 22-18 AWG Wire,Non-Insulated, Stud Size 6
Manufacturer: Molex
Catalog
Krimptite Spade Tongue Terminal for 22-18 AWG Wire,Non-Insulated, Stud Size 6
Beta
⌘K
Krimptite Spade Tongue Terminal for 22-18 AWG Wire,Non-Insulated, Stud Size 6
Krimptite Spade Tongue Terminal for 22-18 AWG Wire,Non-Insulated, Stud Size 6
Krimptite Spade Tongue Terminal for 22-18 AWG Wire,Non-Insulated, Stud Size 6
| Part | Insulation | Termination | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Length - Overall | Length - Overall | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Terminal Type | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Stud/Tab Size | Length - Termination [custom] | Length - Termination [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Non-Insulated | Crimp | 3.71 mm | 0.146 in | 0.77 in | 19.56 mm | 0.269 in | 6.83 mm | Standard | Electro-Tin | 9.19 mm | 0.362 " | Copper | 6 Stud | 0.245 in | 6.22 mm | Free Hanging (In-Line) |
