T41415 Series

Catalog

STANDARD CIRCULAR CONNECTORS, WIRE-TO-PANEL, 4 POSITION, SEALABLE, WIRE AND CABLE, SIGNAL, PANEL MOUNT, REVERSE GENDER, NICKEL, M12 CONNECTOR

Part	Number of Positions	Shielding	Connector Type	Contact Finish - Mating	Shell Material	Shell Size - Insert	Color	Ingress Protection	Voltage Rating	Primary Material	Shell Finish	Applications	Fastening Type	Orientation	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insert Material
TE Connectivity AMP Connectors T4141510044-000	5	Shielded	Receptacle Female Sockets	Gold	Copper Alloy	M12-5	Silver	IP67 - Dust Tight Waterproof	250 V	Metal	Nickel	Industrial	Threaded	D	Bulkhead - Front Side Nut	85 °C	-40 C	Panel Mount Through Hole	Solder	UL94 V-0	4 A	0.76 Ám	30 Áin	Copper Alloy	Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors T4141512021-000	2	Unshielded	Plug Female Sockets	Gold	Copper Alloy	M12-2	Silver	IP67 - Dust Tight Waterproof	250 V	Metal	Nickel	Industrial	Threaded	D	Bulkhead - Front Side Nut	85 °C	-40 C	Panel Mount Through Hole	Solder	UL94 V-0	4 A	0.076 µm	3 µin	Copper Alloy	Nylon 6/6 Polyamide (PA66)

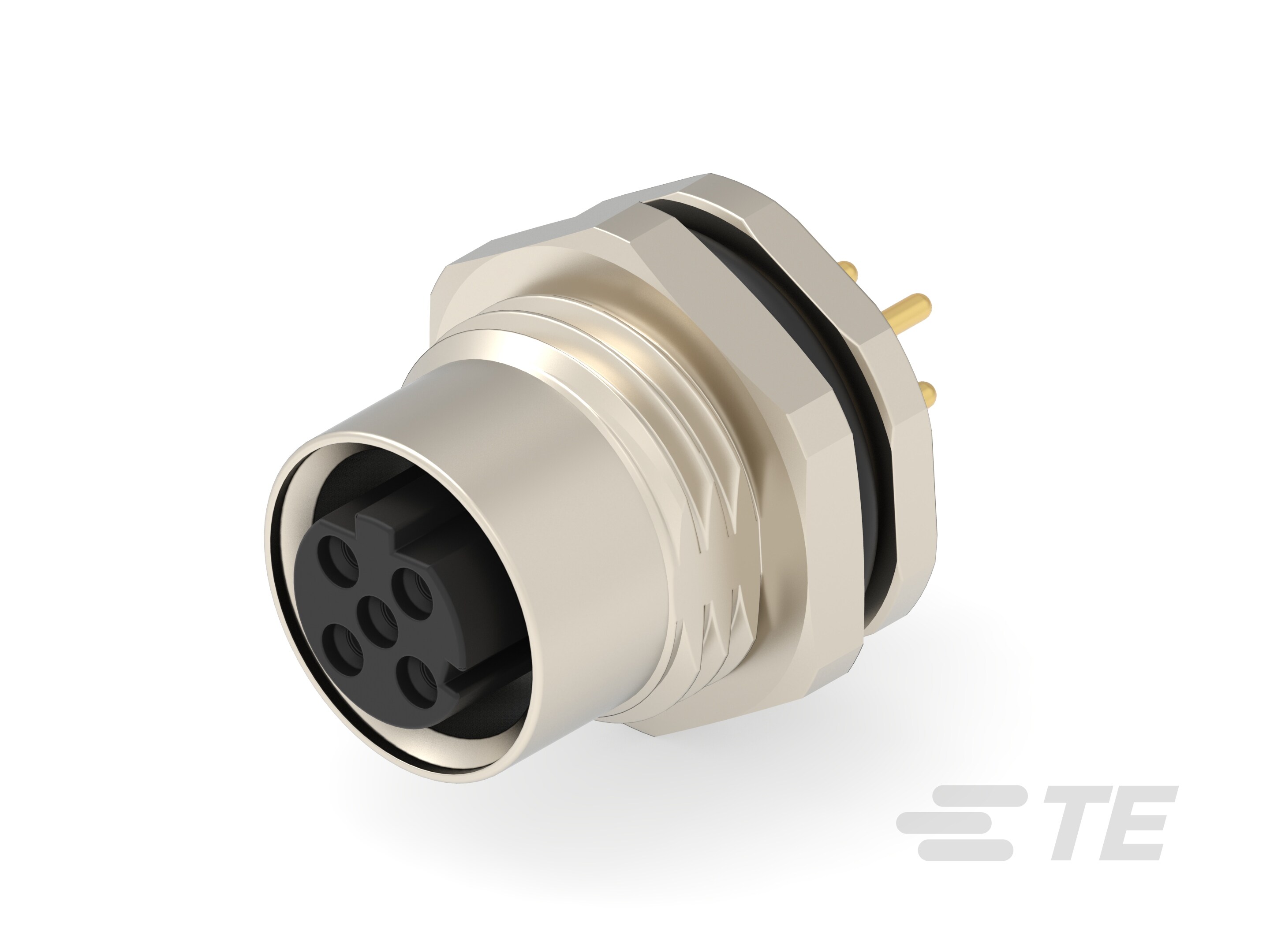

TE Connectivity AMP Connectors T4141512051-000	5	Unshielded	Plug Female Sockets	Gold	Copper Alloy	M12-5	Silver	IP67 - Dust Tight Waterproof	60 VDC	Metal	Nickel	Industrial	Threaded	D	Bulkhead - Front Side Nut	85 °C	-40 C	Panel Mount Through Hole	Solder	UL94 V-0	4 A	0.076 µm	3 µin	Copper Alloy	Nylon 6/6 Polyamide (PA66)
