095503 Series

Manufacturer: Molex

Catalog

CONN MOD JACK 6P6C VERT UNSHLD

Part	Orientation	Termination	Shielding	Tab Direction	LED Color	Housing Material	Contact Material	Mounting Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Number of Positions/Contacts	Number of Ports	Contact Finish	Connector Type	Ratings
Molex 0955032661	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Through Hole	1	85 °C	-40 °C	Flash	6p6c (RJ11 RJ12 RJ14 RJ25)	1	Gold	Jack	Cat3
Molex 0955036887
Molex 0955032880	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Through Hole	1	85 °C	-40 °C	Flash	8p8c (RJ45 Ethernet)	1	Gold	Jack	Cat3
Molex 0955037440	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Through Hole	1	85 °C	-40 °C		4p4c	1	Gold	Jack	Cat3

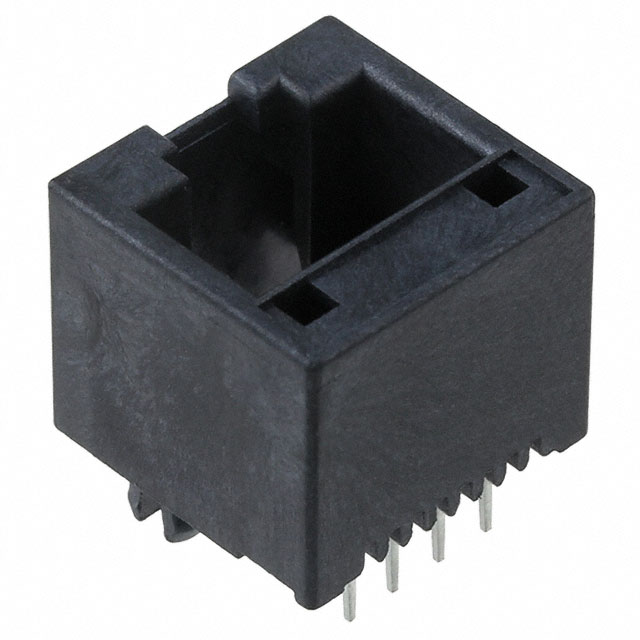

Molex 0955032884	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Through Hole	1	85 °C	-40 °C	Flash	8p8c (RJ45 Ethernet)	1	Gold	Jack	Cat3

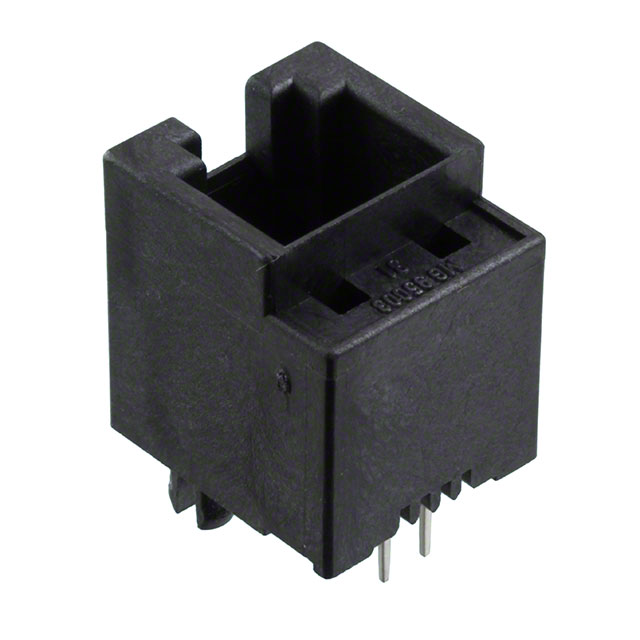

Molex 0955032641	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Through Hole	1	85 °C	-40 °C	Flash	6p4c	1	Gold	Jack	Cat3
Molex 0955036671	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Surface Mount	1	85 °C	-40 °C	Flash	6p6c (RJ11 RJ12 RJ14 RJ25)	1	Gold	Jack	Cat3
Molex 0955036651	Vertical	Solder	Unshielded	User Selectable	Does Not Contain LED	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	Surface Mount	1	85 °C	-40 °C	Flash	6p4c	1	Gold	Jack	Cat3
