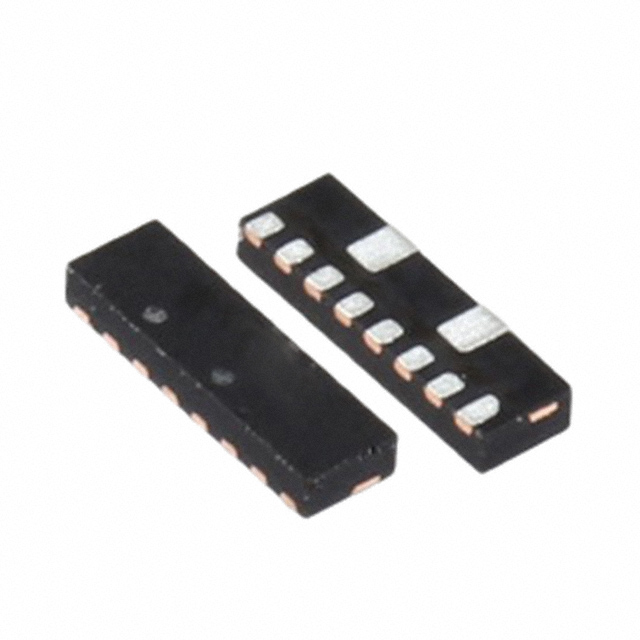

Low Capacitance ESD Protection Diode Array, Thunderbolt
Key Features
• 0.25pF max capacitance
• Clamping voltage less than 8.6V at 16A
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• Protection for the Following IEC Standards:IEC 61000−4−2 (Level 4)
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant
Description
AI
The ESD8006 transient voltage suppressor is specifically designed to protect USB 3.0 and Thunderbolt interfaces from ESD. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines.
