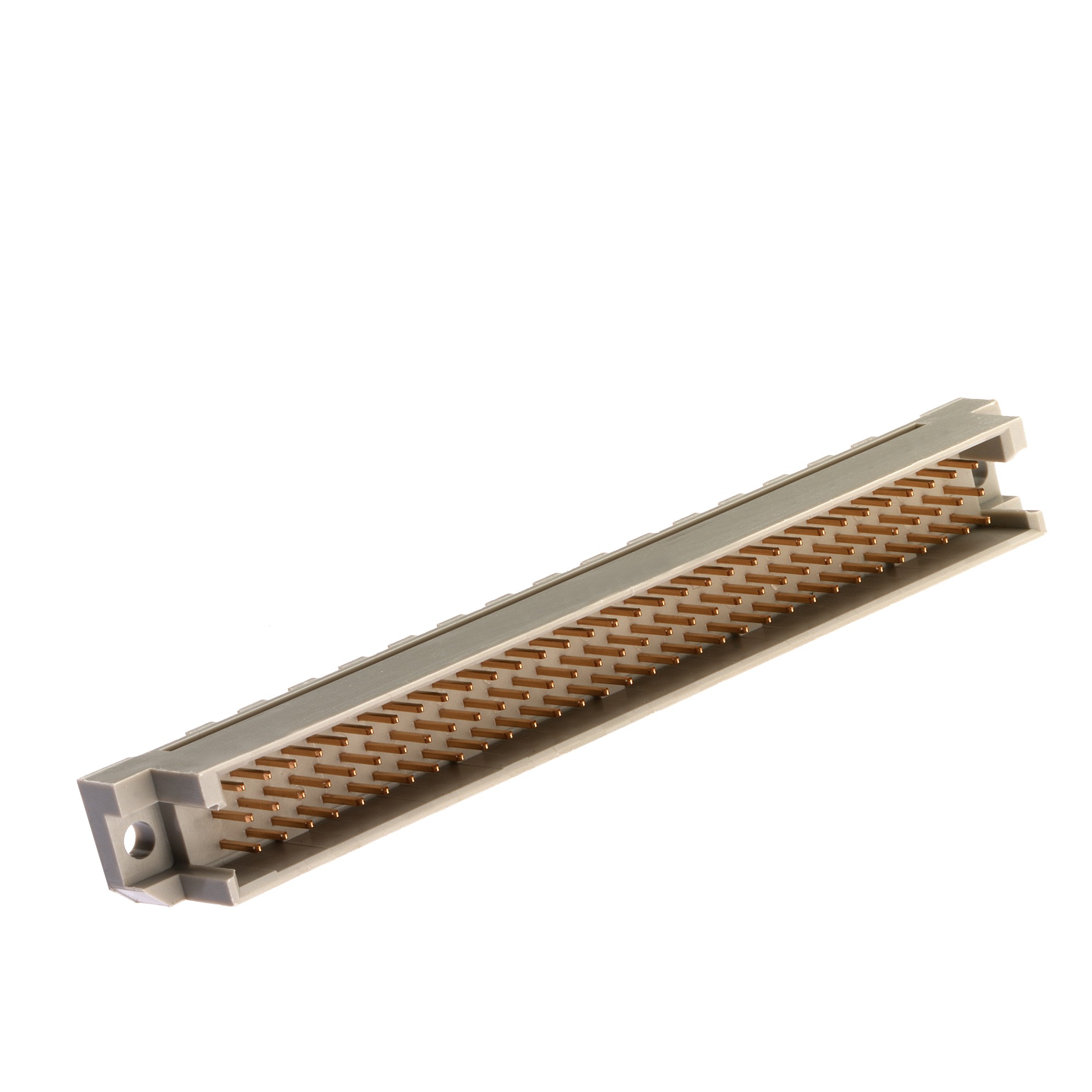

DIN-064R Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K
CONN DIN RCPT 96POS PCB RA GOLD
| Part | Material Flammability Rating | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Contact Finish | Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Type | Number of Positions Loaded | Pitch | Pitch | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Right Angle Through Hole | 3 µin | 0.076 Ám | Board Lock | Receptacle Female Sockets | 64 | 0.1 " | 2.54 mm | 96 | 3 |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Right Angle Through Hole | 1 µin | 0.025 µm | Board Lock | Receptacle Female Sockets | 64 | 0.1 " | 2.54 mm | 96 | 3 |
 3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Right Angle Through Hole | 3 µin | 0.076 Ám | Receptacle Female Sockets | 64 | 0.1 " | 2.54 mm | 96 | 3 | |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Through Hole | 3 µin | 0.076 Ám | Plug Male Pins | 64 | 0.1 " | 2.54 mm | 96 | 3 | |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Through Hole | 30 Áin | 0.76 Ám | Plug Male Pins | 64 | 0.1 " | 2.54 mm | 96 | 3 | |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Right Angle Through Hole | 1 µin | 0.025 µm | Board Lock | Receptacle Female Sockets | 64 | 0.1 " | 2.54 mm | 96 | 3 |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Press-Fit | Gold | R | Through Hole | 3 µin | 0.076 Ám | Plug Male Pins | 64 | 0.1 " | 2.54 mm | 96 | 3 | |
 3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Through Hole | 3 µin | 0.076 Ám | Plug Male Pins | 64 | 0.1 " | 2.54 mm | 96 | 3 | |
3M Electronic Specialty | UL94 V-0 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | 3 A | Solder | Gold | R | Right Angle Through Hole | 3 µin | 0.076 Ám | Board Lock | Receptacle Female Sockets | 64 | 0.1 " | 2.54 mm | 96 | 3 |
