WR9QA2000 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	No Load Power Consumption	Operating Temperature [Max]	Efficiency	Form	Current - Output (Max) [Max]	Input Type	Input Connector	Output Connector	Approval Agency	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Power (Watts)	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Cord Length	Cord Length
GlobTek, Inc. WR9QA2000USB1NMEDR6B	75 mW	40 °C	CoC Tier 2 Level VI	Wall Mount	2 A	Multi-Blade (Sold Separately)	Multi-Blade	USB Mini	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark SIQ UkrSEPRO	5 V	1.61 in 41 mm	1.24 " 31.5 mm	2.8 in 71 mm	International	10 W	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC

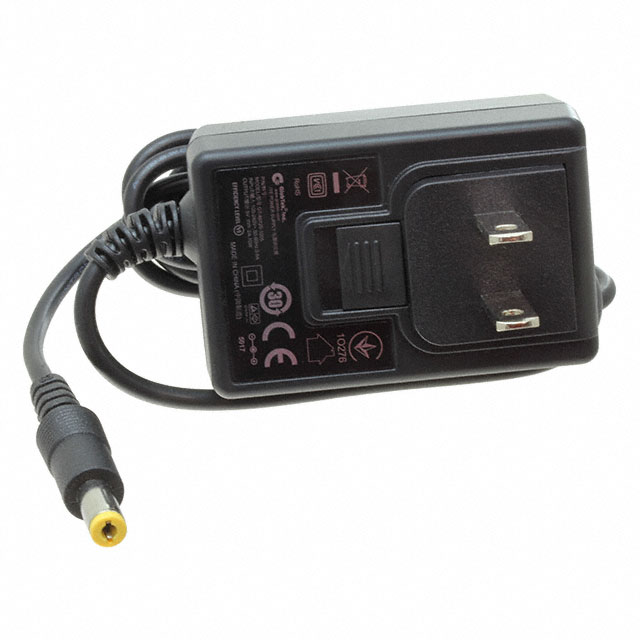

GlobTek, Inc. WR9QA2000CCPNA-N(R6B	75 mW	40 °C	Level VI	Wall Mount	2 A	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)	Barrel Plug	CB CE cULus EAC LPS PSE UkrSEPRO VCCI	5 V	1.59 "	1.24 "	2.52 "	International	10 W	ITE (Commercial)	264 VAC	90 VAC	11 mm	2.1 mm 5.5 mm	60950-1	40.5 mm	31.5 mm	64 mm	Positive Center	1.23 m	48.4 in
GlobTek, Inc. WR9QA2000USB1NMEDR6W	75 mW	40 °C	CoC Tier 2 Level VI	Wall Mount	2 A	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)	USB A Receptacle	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark SIQ UkrSEPRO	5 V	1.61 in 41 mm	1.24 " 31.5 mm	2.8 in 71 mm	International	10 W	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC			60335-1 60601-1-11 60601-1-2 60950-1 62368-1

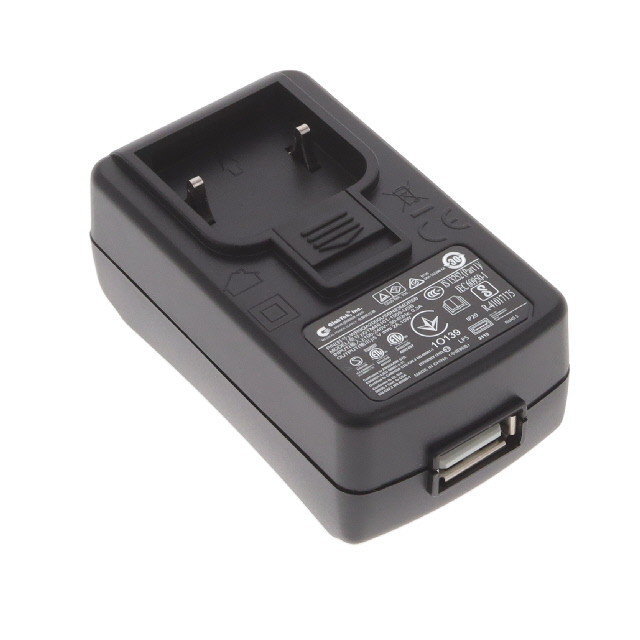

GlobTek, Inc. WR9QA2000USBN23MDR6B	100 mW	40 °C	CoC Tier 2 Level VI	Wall Mount	2 A	Multi-Blade (Sold Separately)	Multi-Blade	USB A Receptacle	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark SIQ UkrSEPRO	5 V	1.61 in 41 mm	1.24 " 31.5 mm	2.8 in 71 mm	International	10 W	Household Appliances ITE (Commercial) Medical	264 VAC	90 VAC
