MF-R0 Series

Catalog

PTC RESET FUSE 60V 170MA RADIAL

Part	Approval Agency	Current - Trip (It)	Current - Max [Max]	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Lead Spacing	Lead Spacing	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Current - Hold (Ih) (Max) [Max]	Time to Trip	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]
Bourns Inc. MF-R017	cURus TUV	340 mA	40 A	60 V	8 Ohms	85 °C	-40 C	0.5 in	12.7 mm	Through Hole	0.201 in	5.1 mm	2 Ohms	Disc Radial	170 mA	3 s	Polymeric
Bourns Inc. MF-R010	cURus TUV	200 mA	40 A	60 V	7.5 Ohms	85 °C	-40 C	0.5 in	12.7 mm	Through Hole	0.201 in	5.1 mm	2.5 Ohms	Disc Radial	100 mA	4 s	Polymeric

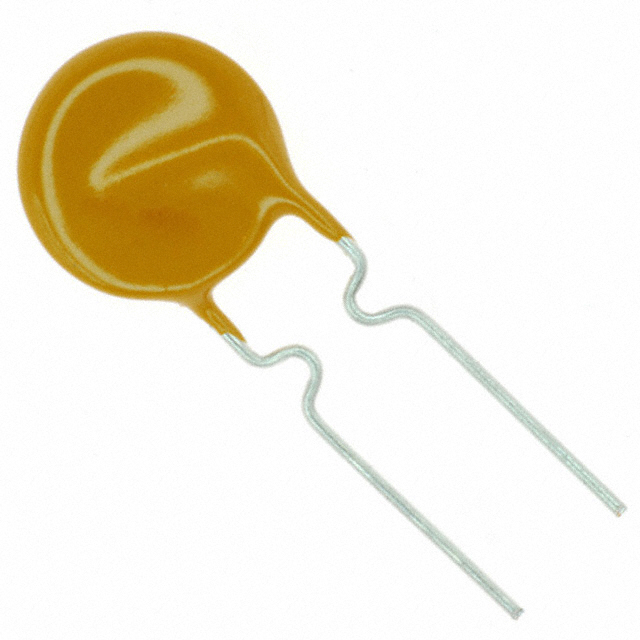

Bourns Inc. MF-R075	cURus TUV	1.5 A	40 A	60 V	600 mOhms	85 °C	-40 C			Through Hole	0.201 in	5.1 mm	180 mOhms	Disc Radial	750 mA	6.3 s	Polymeric	16 mm	0.63 in	0.409 in	10.4 mm	0.122 in	3.1 mm
Bourns Inc. MF-R065	cURus TUV	1.3 A	40 A	60 V	720 mOhms	85 °C	-40 C	0.598 in	15.2 mm	Through Hole	0.201 in	5.1 mm	270 mOhms	Disc Radial	650 mA	5.3 s	Polymeric			9.7 mm	0.382 "	3.1 mm	0.122 "
