GWJTLPS2.C Series

Catalog

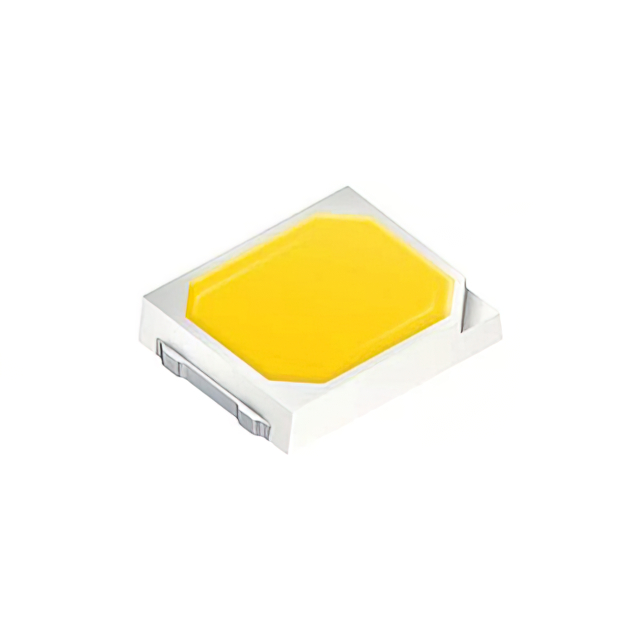

LED DURIS E2835 WHITE 6500K 2835

Part	CRI (Color Rendering Index)	Supplier Device Package	Thermal Resistance of Package	Current - Test	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Mounting Type	Color	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Viewing Angle	Package / Case
ams-OSRAM USA INC. GW JTLPS2.CM-JMKM-XX51-1-150-R33	90	2835	16 °C/W	150 mA	6500 K	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 in	3.06 V	Surface Mount	Cool White	76 lm	66 lm	56 lm	0.03 in	0.75 mm	250 mA	120 °	1113 (2835 Metric)
ams-OSRAM USA INC. GW JTLPS2.CM-JMKM-XX52-1-150-R33	90	2835	16 °C/W	150 mA	5700 K	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 in	3.06 V	Surface Mount	Cool White	76 lm	66 lm	56 lm	0.03 in	0.75 mm	250 mA	120 °	1113 (2835 Metric)
ams-OSRAM USA INC. GW JTLPS2.CM-JMKM-XX53-1-150-R33	90	2835	16 °C/W	150 mA	5000 K	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 in	3.06 V	Surface Mount	Cool White	76 lm	66 lm	56 lm	0.03 in	0.75 mm	250 mA	120 °	1113 (2835 Metric)
ams-OSRAM USA INC. GW JTLPS2.CM-JMKM-XX56-1-150-R33	90	2835	16 °C/W	150 mA	3500 K	144 lm/W	0.128 in	2.8 mm	3.25 mm	0.11 in	3.06 V	Surface Mount	Warm White	76 lm	66 lm	56 lm	0.03 in	0.75 mm	250 mA	120 °	1113 (2835 Metric)
