PJ-036 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN DC POWER JACK F 2 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R

Part	Contact Material - Plating	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Internal Switch(s)	Body Color	Termination	Contact Material [custom]	Gender	Mating Length/Depth	Mating Length/Depth	Material Flammability Rating	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Current Rating (Amps)	Voltage - Rated	Features	Mating Length/Depth [z]	Mating Length/Depth [z]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]

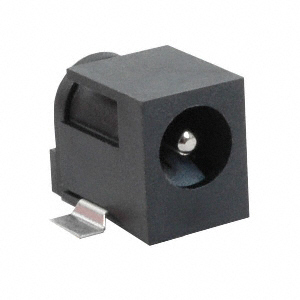

Same Sky (Formerly CUI Devices) PJ-036AH-SMT-TR	Silver	2 mm 6.3 mm	0.079 in 0.248 in	Right Angle Surface Mount	0.083 " 0.217 in	2.1 mm 5.5 mm	Single Switch Normally Closed	Black	Solder	Brass Copper Alloy	Male	9.15 mm	0.36 in	UL94 V-0	Jack	2	3	Nylon 6T Polyamide (PA6T)	85 °C	-25 °C	Unshielded	5 A	24 VDC
Same Sky (Formerly CUI Devices) PJ-036DH		1.3 mm 4 mm	0.051 in 0.157 in	Right Angle Through Hole	0.051 " 0.138 in	1.3 mm 3.5 mm	Single Switch Normally Closed		Solder		Male			UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	3.5 A	24 VDC	Board Guide	6.4 mm	0.252 "
Same Sky (Formerly CUI Devices) PJ-036BH-SMT-TR	Silver			Right Angle Surface Mount			Single Switch Normally Closed	Black	Solder	Brass Copper Alloy	Male	9.15 mm	0.36 in	UL94 V-0	Jack	2	3	Nylon 6T Polyamide (PA6T)	85 °C	-25 °C	Unshielded	5 A	24 VDC				0.248 in	0.098 in	2.5 mm	6.3 mm	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-036BH-SMT-TR				Right Angle Surface Mount			Single Switch Normally Closed		Solder		Male	9.15 mm	0.36 in	UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	5 A	24 VDC				0.248 in	0.098 in	2.5 mm	6.3 mm	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-036CH	Silver	1 mm 3.8 mm	0.039 in 0.15 in	Right Angle Through Hole	0.039 " 0.134 "	1 mm 3.4 mm	Single Switch Normally Closed	Black	Solder	Brass Copper Alloy	Male			UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	3.5 A	24 VDC	Board Guide	6.4 mm	0.252 "
Same Sky (Formerly CUI Devices) PJ-036AH-SMT-TR		2 mm 6.3 mm	0.079 in 0.248 in	Right Angle Surface Mount	0.083 " 0.217 in	2.1 mm 5.5 mm	Single Switch Normally Closed		Solder		Male	9.15 mm	0.36 in	UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	5 A	24 VDC
Same Sky (Formerly CUI Devices) PJ-036CH		1 mm 3.8 mm	0.039 in 0.15 in	Right Angle Through Hole	0.039 " 0.134 "	1 mm 3.4 mm	Single Switch Normally Closed		Solder		Male			UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	3.5 A	24 VDC	Board Guide	6.4 mm	0.252 "
Same Sky (Formerly CUI Devices) PJ-036DH	Silver	1.3 mm 4 mm	0.051 in 0.157 in	Right Angle Through Hole	0.051 " 0.138 in	1.3 mm 3.5 mm	Single Switch Normally Closed	Black	Solder	Brass Copper Alloy	Male			UL94 V-0	Jack	2	3		85 °C	-25 °C	Unshielded	3.5 A	24 VDC	Board Guide	6.4 mm	0.252 "
