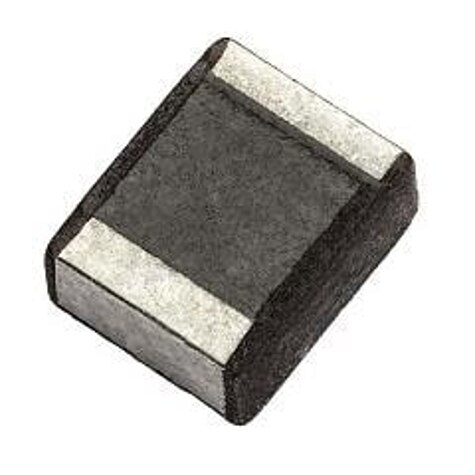

MPIA25-V2 Series
Power Inductors - SMD 3.3uH 2.1A 140mOhms AEC-Q200
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD 3.3uH 2.1A 140mOhms AEC-Q200
Beta
⌘K
Power Inductors - SMD 3.3uH 2.1A 140mOhms AEC-Q200
Power Inductors - SMD 3.3uH 2.1A 140mOhms AEC-Q200
Power Inductors - SMD 3.3uH 2.1A 140mOhms AEC-Q200
| Part | Material - Core | Tolerance | Mounting Type | Package / Case | Package / Case | Current Rating (Amps) | Shielding | Supplier Device Package | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | Inductance Frequency - Test | Current - Saturation (Isat) | Ratings | Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Iron Powder | 20 % | Surface Mount | 2520 Metric | 1008 | 1.6 A | Shielded | 1008 | 170 mOhm | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 3.3 µH | 1 MHz | 2.1 A | AEC-Q200 | Molded | 125 °C | -40 C | 35 MHz |
