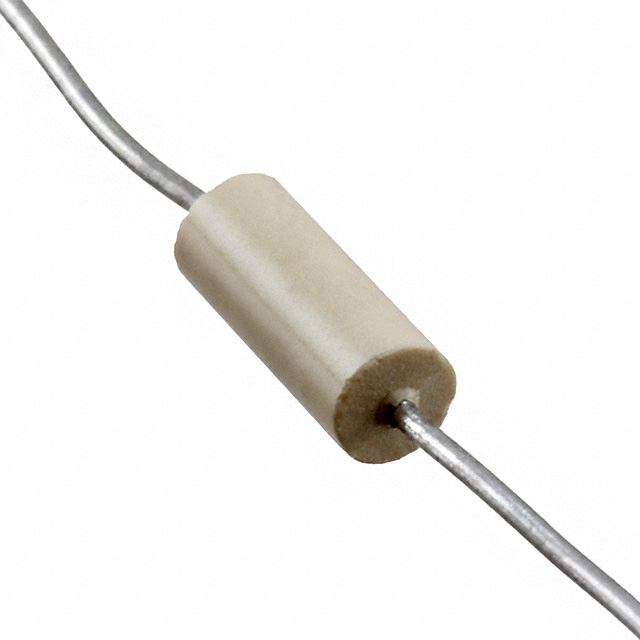

ER1025 Series

Manufacturer: Delevan

Catalog

RF INDUCTORS - LEADED 1.8UH 5% .65OHM EST RELI THRUHOLE RF

Part	Inductance	Inductance Frequency - Test	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Package / Case	Q @ Freq [custom]	Q @ Freq [custom]	Current Rating (Amps)	Frequency - Self Resonant	Mounting Type	Type	Material - Core	Tolerance	Q @ Freq	Q @ Freq [custom]
Delevan ER1025-94KP	100 nH	25 MHz	Unshielded	-55 C	105 ░C	80 mOhm	Axial	25 MHz	40	1.35 A	680 MHz	Through Hole	Molded	Phenolic	10 %
Delevan ER1025-91JP	910 µH	790 kHz	Unshielded	-55 C	105 ░C	72 Ohm	Axial			0.028 A	3.4 MHz	Through Hole	Molded	Ferrite	5 %	30 790 kHz
Delevan ER1025-46JR	12 µH	2.5 MHz	Unshielded	-55 C	105 ░C	2.7 Ohm	Axial			155 mA	40 MHz	Through Hole	Molded	Iron	5 %	2.5 MHz 45
Delevan ER1025-21JR	1.1 µH	7.9 MHz	Unshielded	-55 C	105 ░C	180 mOhm	Axial	7.9 MHz	25	590 mA	150 MHz	Through Hole		Iron	5 %
Delevan ER1025-15JR	620 nH	25 MHz	Unshielded	-55 C	105 ░C		Axial			495 mA	275 MHz	Through Hole	Molded	Phenolic	5 %
Delevan ER1025-20KR	1 µH	25 MHz	Unshielded	-55 C	125 °C	1 Ohm	Axial		25	385 mA	230 MHz	Through Hole		Phenolic	10 %		25 MHz
Delevan ER1025-90JM	820 µH	790 kHz	Unshielded	-55 C	105 ░C	65 Ohm	Axial			29 mA	3.8 MHz	Through Hole	Molded	Ferrite	5 %	30 790 kHz
Delevan ER1025-48JP	15 µH	2.5 MHz	Unshielded	-55 C	105 ░C	2.8 Ohm	Axial	2.5 MHz	40	150 mA	35 MHz	Through Hole	Molded	Iron	5 %
Delevan ER1025-62KM	56 µH	2.5 MHz	Unshielded	-55 C	105 ░C	5.7 Ohm	Axial			100 mA	18 MHz	Through Hole	Molded	Ferrite	10 %	2.5 MHz 45
Delevan ER1025-05JR	240 nH	25 MHz	Unshielded	-55 C	125 °C	160 mOhm	Axial			960 mA	430 MHz	Through Hole	Molded	Phenolic	5 %	25 MHz 33
