DELTA6 Series

Manufacturer: Siretta

Catalog

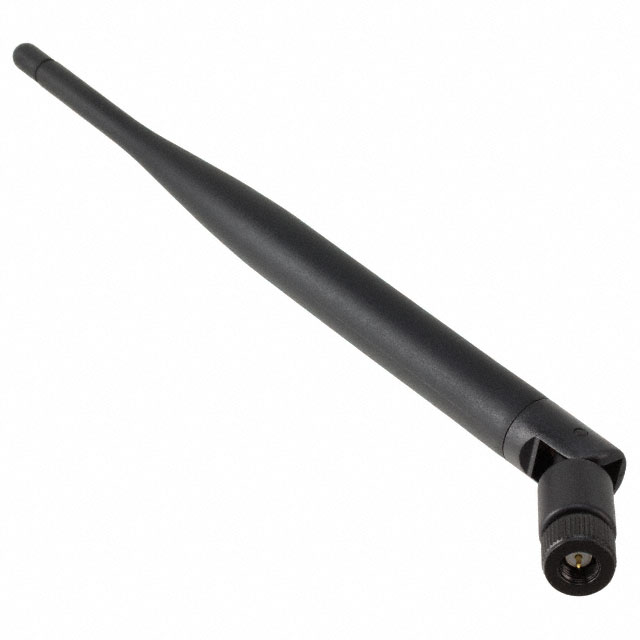

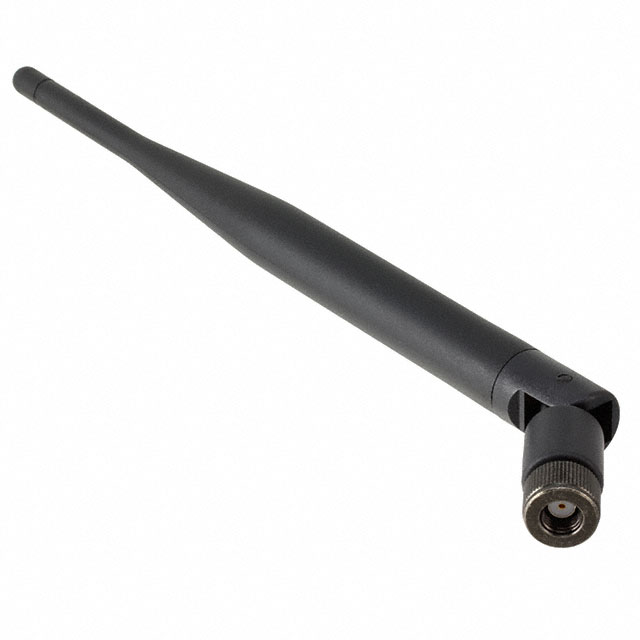

RF ANT 2.4GHZ WHIP TILT RP-SMA

Part	Frequency (Center/Band)	Mounting Type	RF Family/Standard	Antenna Type	VSWR	Number of Bands	Termination	Applications	Gain	Height (Max) [z]	Height (Max) [z]	Frequency Range [Max]	Frequency Range [Min]	Frequency Group
Siretta DELTA6B/X/SMAM/RP/S/11	2.4 GHz	Connector Mount	802.15.4 Bluetooth WiFi	Tilt Whip	2	1	RP-SMA Male	Bluetooth WLAN Zigbee™	5 dBi	7.717 in	196 mm	2.5 GHz	2.4 GHz
Siretta DELTA6A/X/SMAM/S/S/11	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 868 MHz 900 MHz 915 MHz	Connector Mount	Cellular	Tilt Whip	2	7		GPRS GSM UMTS	6.8 dBi	7.717 in	196 mm
Siretta DELTA6C/X/SMAM/S/S/11	2.4 GHz 5.8 GHz	Connector Mount	802.15.4 Bluetooth WiFi	Tilt Whip	2	2		Bluetooth WLAN Zigbee™	4.3 dBi	7.717 in	196 mm			SHF UHF
Siretta DELTA6C/X/SMAM/S/RP/11	2.4 GHz 5.8 GHz	Connector Mount	802.15.4 Bluetooth WiFi	Tilt Whip	2	2	RP-SMA Male	Bluetooth WLAN Zigbee™	4.3 dBi	7.717 in	196 mm			SHF UHF
Siretta DELTA6B/x/SMAM/S/S/11	2.4 GHz	Connector Mount	802.15.4 Bluetooth WiFi	Tilt Whip	2	1		Bluetooth WLAN Zigbee™	5 dBi	7.717 in	196 mm	2.5 GHz	2.4 GHz
