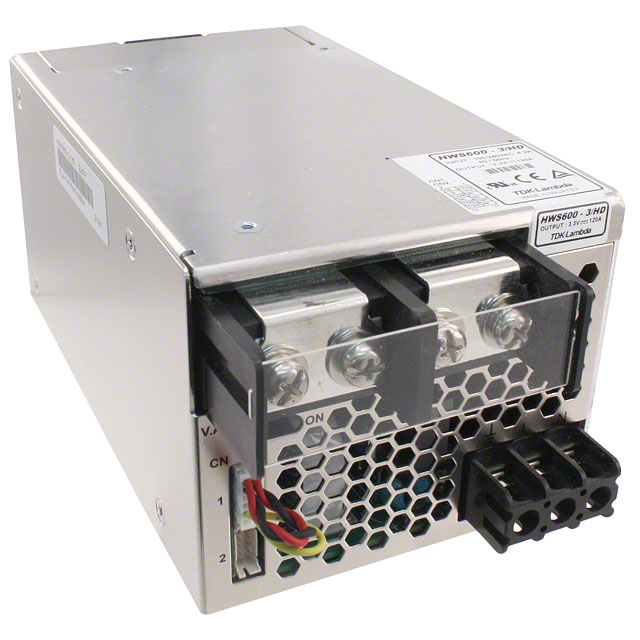

HWS600 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 645 W, 15 VDC, 43 A

Part	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Efficiency	Power (Watts)	Type	Features	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Mounting Type	Voltage - Output 1 [custom]
TDK Corporation HWS600-15/ME	265 VAC	85 VAC	43 A	84 %	600 W	Enclosed	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	3000 V	1	70 °C	-10 °C	CE	15 V	100.1 mm	3.23 in	3.94 in	82 mm	165.1 mm	6.5 in	ITE (Commercial) Medical	Chassis Mount
TDK Corporation HWS600P-36	265 VAC	85 VAC	16.7 A	85 %	600 W	Conformal Coated Enclosed	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	3000 V	1	70 °C	-10 °C	CE		100.1 mm	3.23 in	3.94 in	82 mm	165.1 mm	6.5 in	ITE (Commercial)	Chassis Mount	36 V
TDK Corporation HWS600-24/ME	265 VAC	85 VAC	27 A	85 %	600 W	Conformal Coated Enclosed	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	3000 V	1	70 °C	-10 °C	CE	24 V	100.1 mm	3.23 in	3.94 in	82 mm	165.1 mm	6.5 in	ITE (Commercial) Medical	Chassis Mount
TDK Corporation HWS600-5/HD	265 VAC	85 VAC	120 A	83 %	600 W	Conformal Coated Enclosed	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	3000 V	1	70 °C	-10 °C	CE	5 V	100.1 mm	3.23 in	3.94 in	82 mm	165.1 mm	6.5 in	ITE (Commercial)	Chassis Mount
TDK Corporation HWS600-15/HD	265 VAC	85 VAC	43 A	84 %	645 W	Conformal Coated Enclosed	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	3000 V	1	71 °C	-40 °C	CE	15 V	100.1 mm	3.23 in	3.94 in	82 mm	165.1 mm	6.5 in	ITE (Commercial)	Chassis Mount
