101/102 PHR-ST Series

Catalog

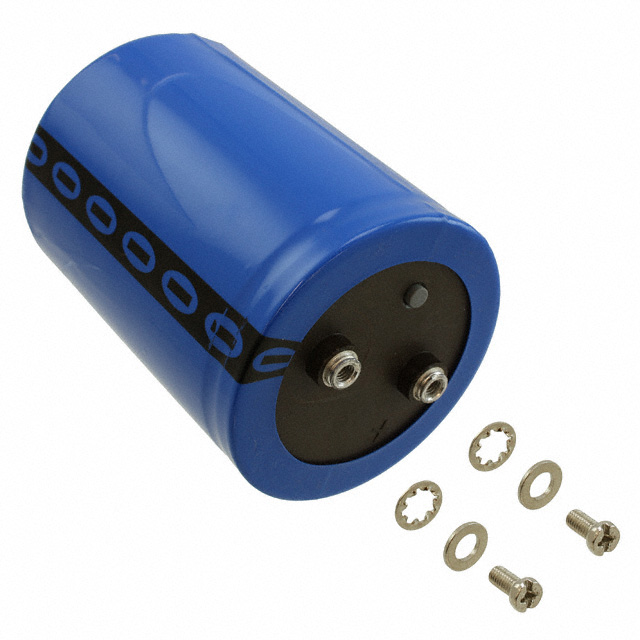

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 150000UF 40V 76X105MM 85 C 15000H

Part	ESR (Equivalent Series Resistance)	Applications	Mounting Type	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	Lifetime	Capacitance	Size / Dimension Diameter	Polarization	Voltage - Rated	Tolerance	Impedance	Package / Case	Lead Spacing
Vishay Dale MAL210117154E3	7 mOhm	General Purpose	Chassis Mount	4.398 in	-40 °C	85 °C	20.5 A	15000 Hrs	150000 µF	2.992 in	Polar	40 V	20 %	6 mOhm	Can - Screw Terminals Radial	1.252 in
Vishay Dale MAL210116333E3	19 mOhm	General Purpose	Chassis Mount	3.413 in	-40 °C	85 °C	9 A	10000 Hrs	33000 µF	1.378 in	Polar	25 VAC	20 %	17 mOhms	Can - Screw Terminals Radial	0.504 in
Vishay Dale MAL210117473E3	12 mOhm	General Purpose	Chassis Mount	3.15 in	-40 °C	85 °C	18.98 A	10000 Hrs	47000 µF	1.969 in	Polar	40 V	20 %	10 mOhm	Can - Screw Terminals Radial	0.874 in
Vishay Dale MAL210218102E3	132 mOhm	General Purpose	Chassis Mount	3.496 in	-40 °C	85 °C	5.6 A	10000 Hrs	1000 µF	1.969 in	Polar	385 V	20 %	89 mOhm	Can - Screw Terminals Radial	0.874 in
Vishay Dale MAL210158223E3	19 mOhm	General Purpose	Chassis Mount	3.496 in	-40 °C	85 °C	11.1 A	10000 Hrs	22000 µF	1.969 in	Polar	63 V	20 %	15 mOhms	Can - Screw Terminals Radial	0.874 in
