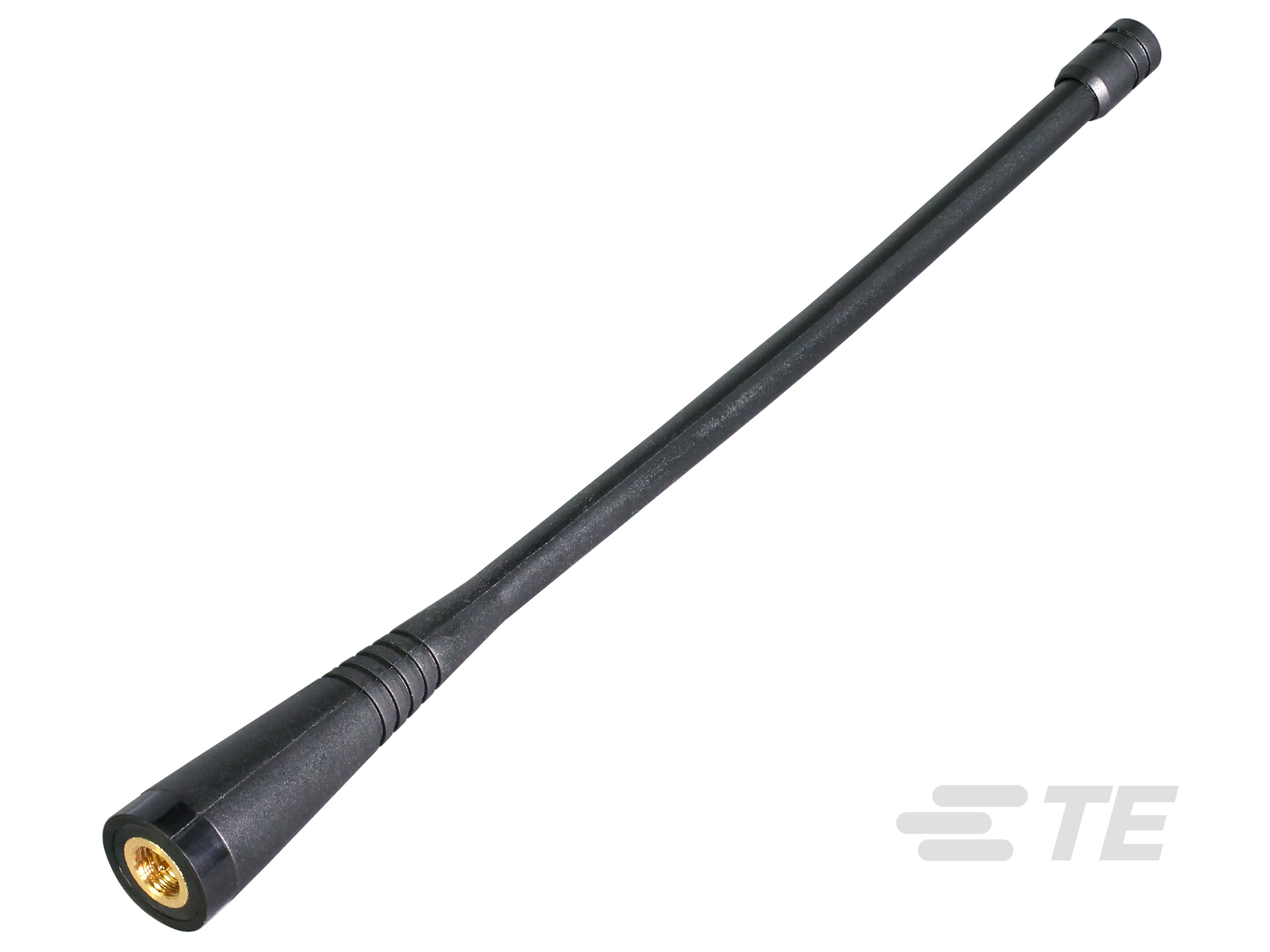

ANT-410 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

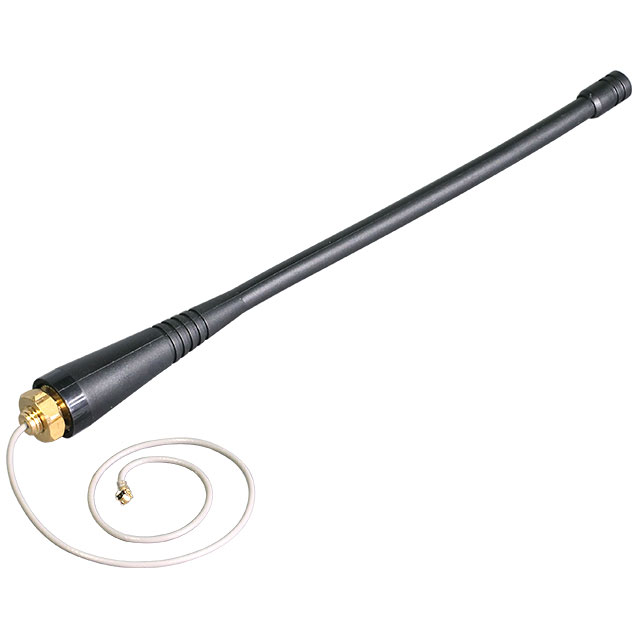

ANTENNA WHIP PNL MNT 410MHZ RG174 216
| Part | Height (Max) [Max] [z] | Height (Max) [z] | Frequency Range [Min] | Frequency Range [Max] | Number of Bands | Applications | Features | VSWR | Antenna Type | Return Loss | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | RF Family/Standard | Mounting Type | Power - Max [Max] | Gain | Frequency (Center/Band) | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6.98 in | 171.2 mm | 410 MHz | 430 MHz | 1 | 5G Cellular LTE mMTC NB-IoT NR | Cable - 216mm | 1.8 | Whip Straight | 10.9 dB | 1 GHz | UHF | 300 MHz | Cellular | Solder | 10 W | 4.1 dBi | 418 MHz | ||
 TE Connectivity AMP Connectors | 6.98 in | 171.2 mm | 410 MHz | 430 MHz | 1 | 5G Cellular LTE mMTC NB-IoT NR | Cable - 216mm | 1.8 | Whip Straight | 10.9 dB | 1 GHz | UHF | 300 MHz | Cellular | Solder | 10 W | 4.1 dBi | 418 MHz | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) |
 TE Connectivity AMP Connectors | 6.98 in | 171.2 mm | 410 MHz | 430 MHz | 1 | 5G Cellular LTE mMTC NB-IoT NR | 1.8 | Whip Straight | 10.9 dB | 1 GHz | UHF | 300 MHz | Cellular | Connector Mount | 10 W | 4.1 dBi | 418 MHz |
