ALCOSWITCH FSM100-104 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Type	Illumination	Contact Rating @ Voltage	Actuator Orientation	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Actuator Height off PCB, Vertical	Outline [y]	Outline [x]	Circuit	Switch Function	Actuator Length, Right Angle	Actuator Height off PCB, Vertical [z]

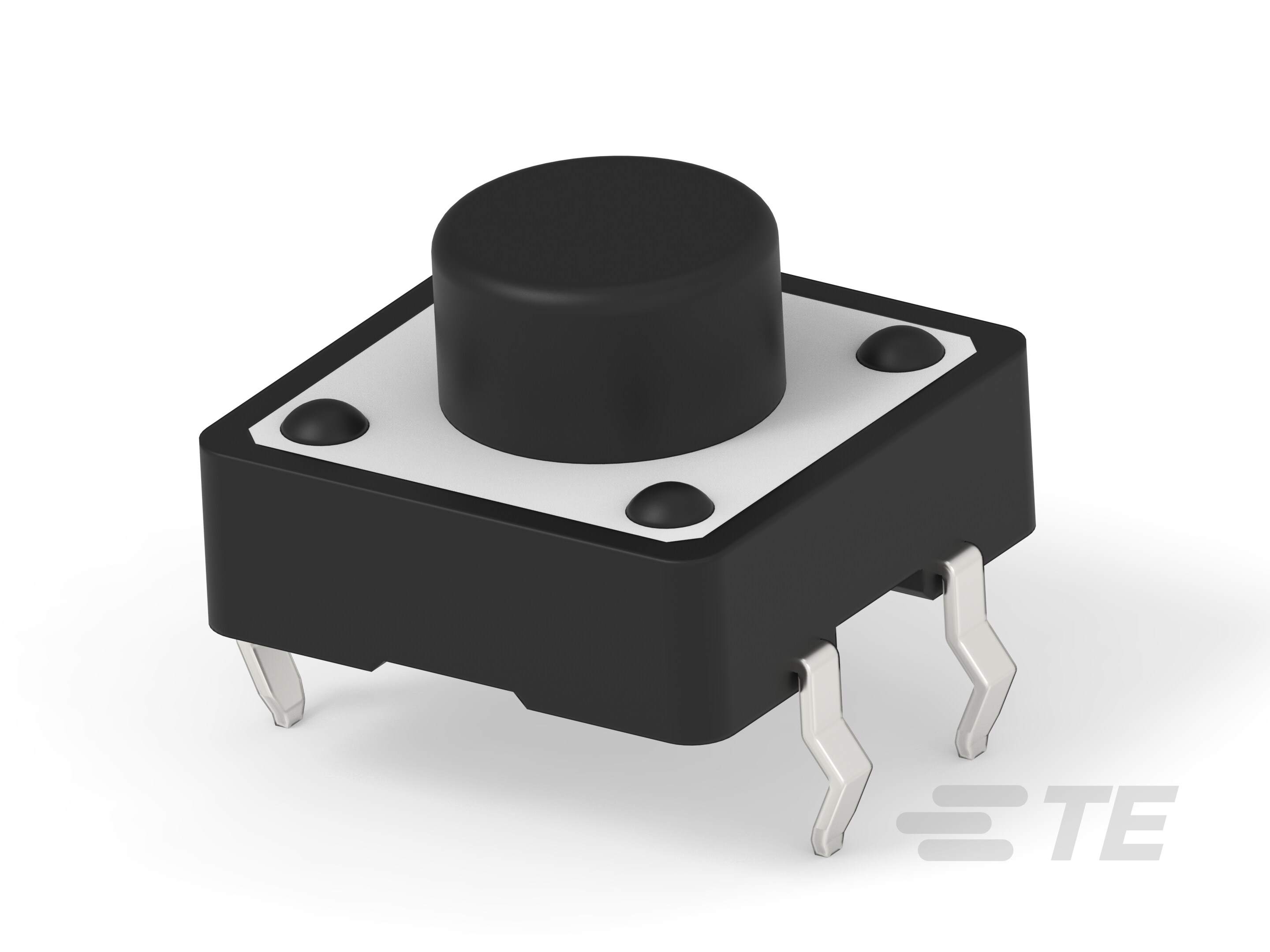

TE Connectivity AMP Connectors FSM101	Standard	Non-Illuminated	0.05 A 24 VDC	Top Actuated	160 gf	85 °C	-35 °C	Through Hole	PC Pin	7.5 mm	12 mm	12 mm	SPST-NO	On-Mom
TE Connectivity AMP Connectors FSM104	Standard	Non-Illuminated	0.05 A 24 VDC	Side Actuated	160 gf	85 °C	-35 °C	Right Angle Through Hole	PC Pin		12 mm	12 mm	SPST-NO	Off-Mom	11.15 mm
TE Connectivity AMP Connectors FSM100A
TE Connectivity AMP Connectors FSM102	Plunger for Cap	Non-Illuminated	0.05 A 24 VDC	Top Actuated	160 gf	85 °C	-35 °C	Through Hole	PC Pin		12 mm	12 mm	SPST-NO	Off-Mom		12 mm
