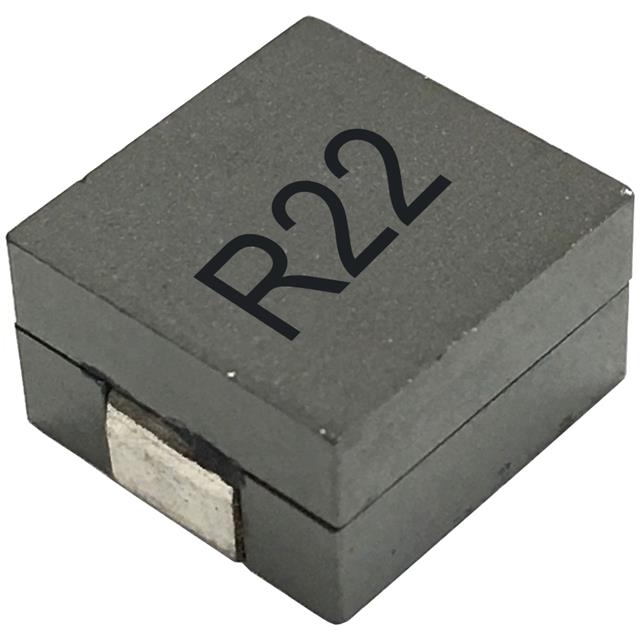

APMI Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) HIGHT CURRENT TYPE

Part	Current Rating (Amps)	Shielding	Material - Core	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Inductance	Inductance Frequency - Test	Mounting Type	DC Resistance (DCR)	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]
Pulse Electronics APMI0004044065NM0K	19 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	65 nH	100 kHz	Surface Mount	0.32 mOhm	20 %	4 mm	0.157 in
Pulse Electronics APMI0010075085NT00	31 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200		100 kHz	Surface Mount	0.39 mOhm	30 %		0.195 in	70 A	7 mm	0.402 in	0.276 in	10.2 mm	4.96 mm
Pulse Electronics APMI0004044022NT0J	28 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	22 nH	100 kHz	Surface Mount	0.23 mOhm	30 %	4 mm	0.157 in	60 A
Pulse Electronics APMI00100868R22M0F	54 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	220 nH	100 kHz	Surface Mount	0.29 mOhm	20 %		0.276 in	50 A	7.8 mm	0.402 in	0.307 "	10.2 mm	7 mm
Pulse Electronics APMI00100868R17L0F	54 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	0.17 µH	100 kHz	Surface Mount	0.29 mOhm	15 %		0.276 in	58 A	7.8 mm	0.402 in	0.307 "	10.2 mm	7 mm
Pulse Electronics APMI00100868R14L0F	54 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	140 nH	100 kHz	Surface Mount	0.29 mOhm	15 %		0.276 in	72 A	7.8 mm	0.402 in	0.307 "	10.2 mm	7 mm
Pulse Electronics APMI00100868R18M0E	54 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	180 nH	100 kHz	Surface Mount	0.29 mOhm	20 %		0.276 in	56 A	7.8 mm	0.402 in	0.307 "	10.2 mm	7 mm
Pulse Electronics APMI00100750R20M00	31 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200		100 kHz	Surface Mount	0.39 mOhm	20 %		0.195 in	33 A	7 mm	0.402 in	0.276 in	10.2 mm	4.96 mm
Pulse Electronics APMI00070750R15M00	31 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	150 nH	100 kHz	Surface Mount	0.32 mOhm	20 %		0.195 in	30 A	7 mm	0.276 "	0.276 in	7 mm	4.96 mm
Pulse Electronics APMI00100750R10L00	31 A	Shielded	Ferrite	Nonstandard	125 °C	-40 C	AEC-Q200	100 nH	100 kHz	Surface Mount	0.39 mOhm	15 %		0.195 in	70 A	7 mm	0.402 in	0.276 in	10.2 mm	4.96 mm
