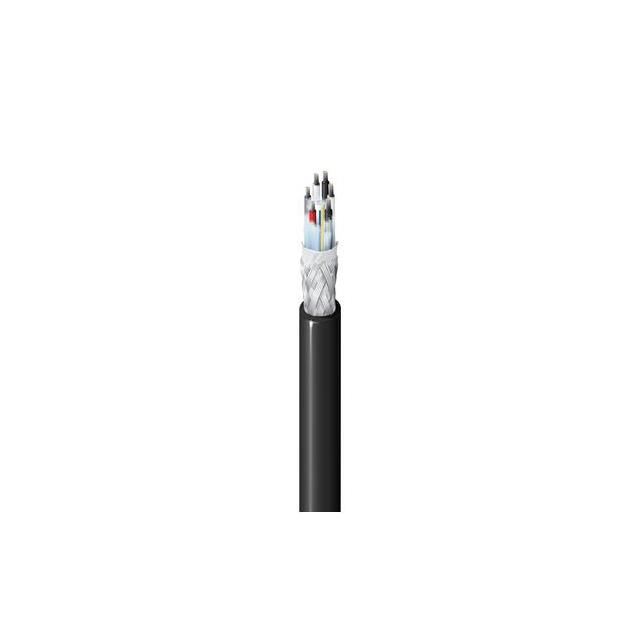

7817A Series
Manufacturer: Belden Inc.
Beta
⌘K
COMPOSITE-SMPTE311M HDTV CABLE
| Part | Shield Coverage | Shield Material | Shield Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | Braid | 20 AWG 24 AWG | 0.058 in | 1.473 mm | 0.472 " | 11.99 mm | Black | 7 Strands 19 | 32 AWG | 8 | 70 °C | -40 C | Multi-Conductor | 304.8 m | 1000 ft | Polyethylene (PE) | Poly-Vinyl Chloride (PVC) | Copper Tinned |
