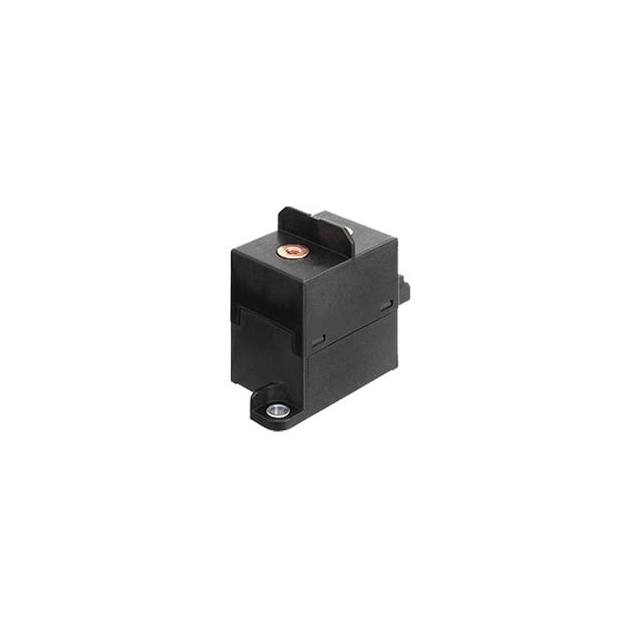

AEVA12 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
AUTOMOTIVE RELAY, 12 VDC, 250 A, SPST-NO, PANEL MOUNT, SCREW, AEVA SERIES
| Part | Coil Resistance | Coil Power | Contact Material | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Operate Time | Release Time | Coil Type | Mounting Type | Coil Current | Termination Style | Contact Form | Coil Voltage | Switching Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 24 Ohms | 6 W | Copper Alloy | 9 VDC | 85 °C | -40 C | 0.5 VDC | 50 ms | 30 ms | Non Latching | Chassis Mount | 500 mA | Screw Terminal | SPST-NO (1 Form A) | 12 VDC | 500 VDC | 250 A |
