EGG.00.302 Series
Manufacturer: LEMO
Beta
⌘K

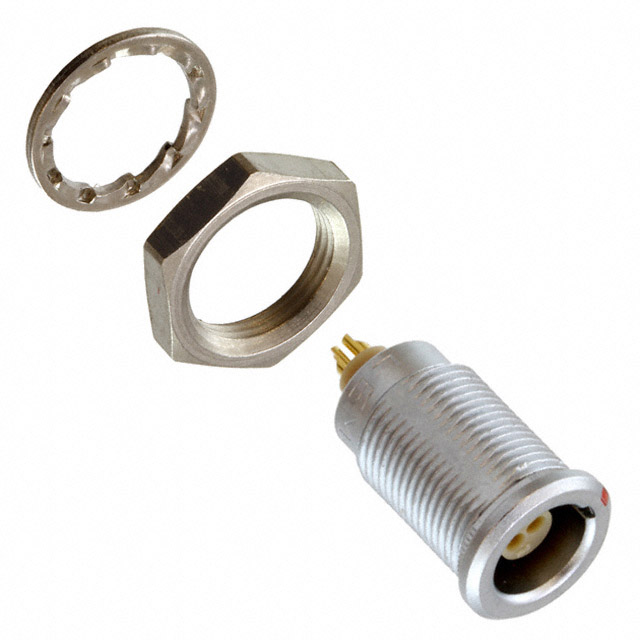

CONN RCPT FMALE 2POS GOLD CRIMP
| Part | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Fastening Type | Connector Type | Shell Finish | Number of Positions | Mounting Feature | Orientation [custom] | Contact Finish - Mating | Contact Material | Mounting Type | Primary Material | Insert Material | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Shell Material | Termination | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 302 | -55 C | 250 °C | IP50 - Dust Protected | Push-Pull | Receptacle Female Sockets | Chrome | 2 | Bulkhead - Rear Side Nut | G | Gold | Bronze | Panel Mount | Metal | Polyetheretherketone (PEEK) | Shielded | 1.5 Ám | 59 Áin | Silver | Brass | Crimp | 5 A | UL94 V-0 |
 LEMO | 302 | -55 C | 250 °C | IP50 - Dust Protected | Push-Pull | Receptacle Female Sockets | Chrome | 2 | Bulkhead - Rear Side Nut | G | Gold | Bronze | Panel Mount | Metal | Polyetheretherketone (PEEK) | Shielded | 1.5 Ám | 59 Áin | Silver | Brass | 3.5 A | UL94 V-0 |
