P50LE Series

Catalog

CONN HEADER SMD 50POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Shrouding	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Type	Contact Type	Insulation Color	Features	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Mounting Type	Fastening Type	Contact Finish - Mating	Number of Rows [custom]	Material Flammability Rating	Contact Material	Style	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating
3M Electronic Specialty P50LE-050P1-SML-TGF	2.03 µm	80 µin	0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS)	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Guide	Tin	50	2 µin	0.051 µm	1.27 mm	0.05 in	0.5 A	Solder	Surface Mount	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire
3M Electronic Specialty P50LE-080P1-RR1-TGF	2.03 µm	80 µin	0.276 in	7 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS)	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Tin	80	2 µin	0.051 µm	1.27 mm	0.05 in	0.5 A	Solder	Right Angle Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm

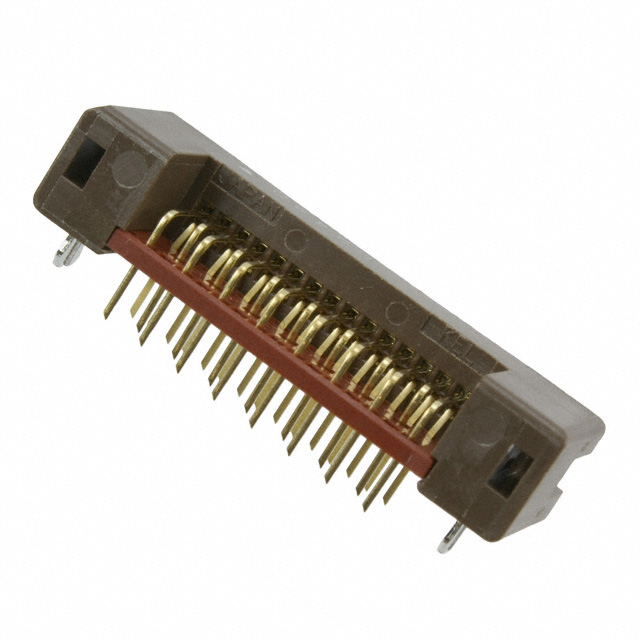

3M Electronic Specialty P50LE-030P1-RR1-DA			0.276 in	7 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Gold	30			1.27 mm	0.05 in	0.5 A	Solder	Right Angle Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm	Flash	Flash

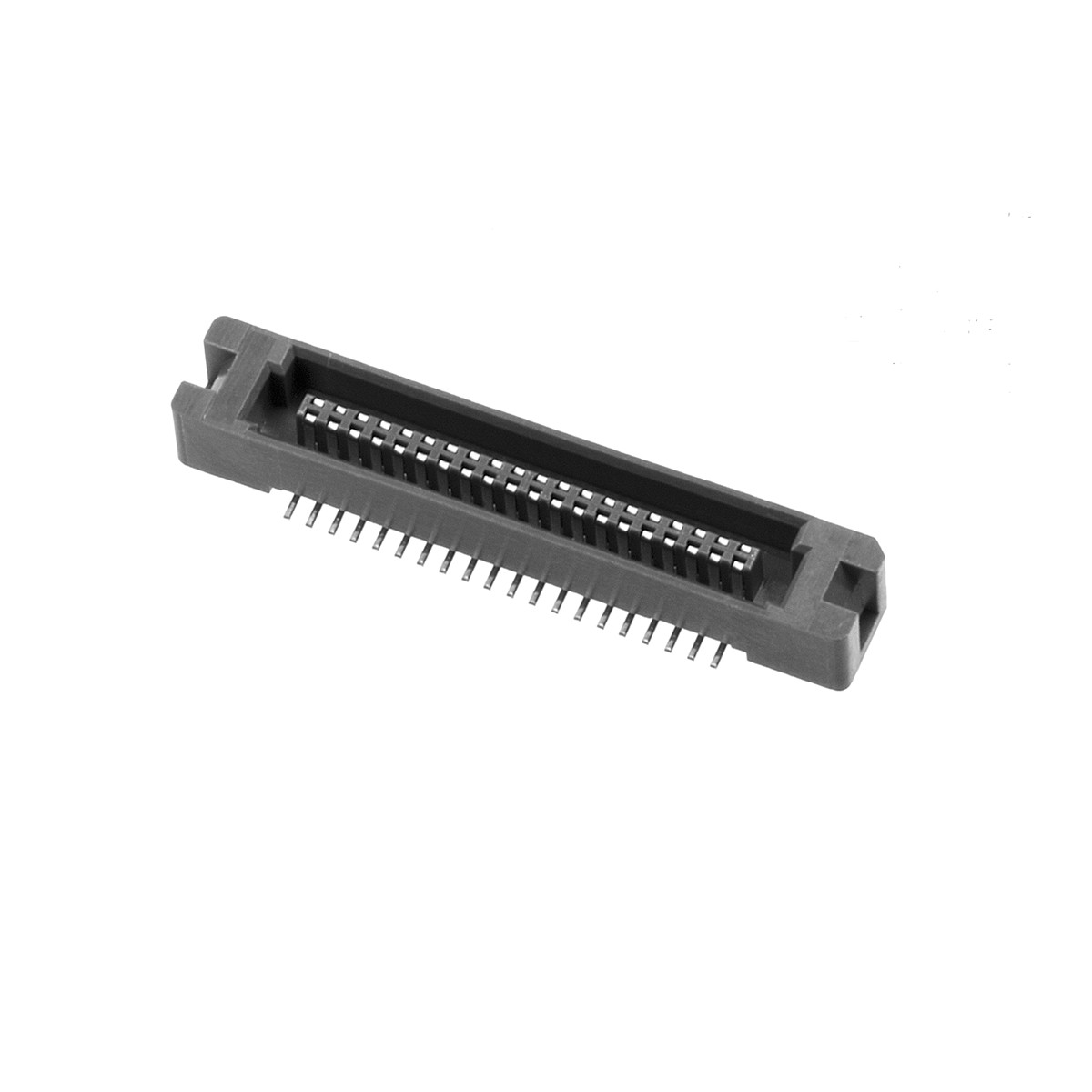

3M Electronic Specialty P50LE-040P1-RR1-DA			0.276 in	7 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Gold	40			1.27 mm	0.05 in	0.5 A	Solder	Right Angle Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm	Flash	Flash
3M Electronic Specialty P50LE-050P1-RR1-TGF	2.03 µm	80 µin	0.276 in	7 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS)	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Tin	50	2 µin	0.051 µm	1.27 mm	0.05 in	0.5 A	Solder	Right Angle Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm
3M Electronic Specialty P50LE-068P1-SML-DA			0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Guide	Gold	68 positions			1.27 mm	0.05 in	0.5 A	Solder	Surface Mount	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire			Flash	Flash
3M Electronic Specialty P50LE-020P1-SML-DA			0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Guide	Gold	20			1.27 mm	0.05 in	0.5 A	Solder	Surface Mount	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire			Flash	Flash
3M Electronic Specialty P50LE-068P1-R1-TGF	2.03 µm	80 µin	0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS)	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Tin	68 positions	2 µin	0.051 µm	1.27 mm	0.05 in	0.5 A	Solder	Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm
3M Electronic Specialty P50LE-040P1-R1-DA			0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Gold	40			1.27 mm	0.05 in	0.5 A	Solder	Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm	Flash	Flash
3M Electronic Specialty P50LE-050P1-R1-DA			0.197 "	5 mm	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	85 °C	All	Plug	Center Strip Contact	Brown	Board Lock	Gold	50			1.27 mm	0.05 in	0.5 A	Solder	Through Hole	Latch Holder	Gold	2	UL94 V-0	Phosphor Bronze	Board to Cable/Wire	0.118 in	3 mm	Flash	Flash
