PSC Series
Manufacturer: Chemi-Con
Beta
⌘K

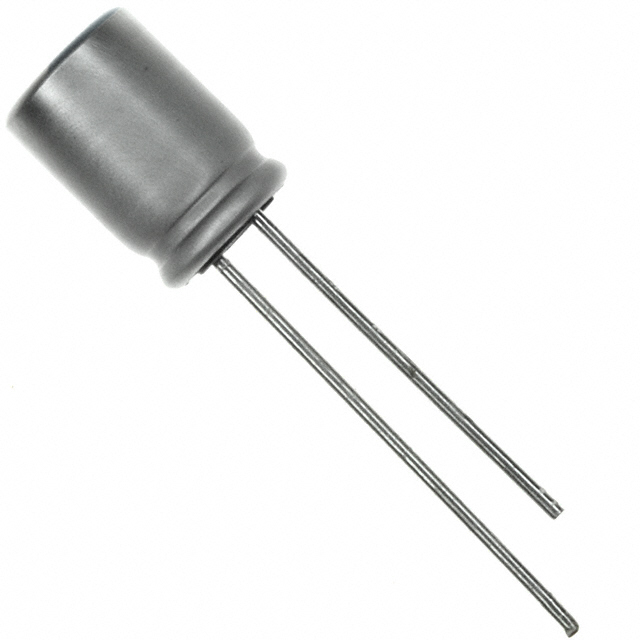

ALUMINUM ORGANIC POLYMER CAPACITORS 1000UF 2.5 VOLT
| Part | Ripple Current @ High Frequency | ESR (Equivalent Series Resistance) | Capacitance | Voltage - Rated | Lifetime @ Temp. | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Lead Spacing | Lead Spacing | Applications | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 6.1 A | 7 mOhms | 1000 µF | 2.5 V | 2000 Hrs | Polymer | Can Radial | -55 C | 105 ░C | 0.315 in | 8 mm | 20 % | 0.512 " | 13 mm | Through Hole | 0.138 in | 3.5 mm | General Purpose | ||
 Chemi-Con | 5.08 A | 11 mOhm | 270 µF | 16 V | 2000 Hrs | Polymer | Can Radial | -55 C | 105 ░C | 0.315 in | 8 mm | 20 % | 0.512 " | 13 mm | Through Hole | 0.138 in | 3.5 mm | General Purpose | ||
 Chemi-Con | 6.1 A | 7 mOhms | 560 µF | 4 V | 2000 Hrs | Polymer | Can Radial | -55 C | 105 ░C | 0.315 in | 8 mm | 20 % | Through Hole | 0.138 in | 3.5 mm | General Purpose | 8 mm | 0.315 in |
