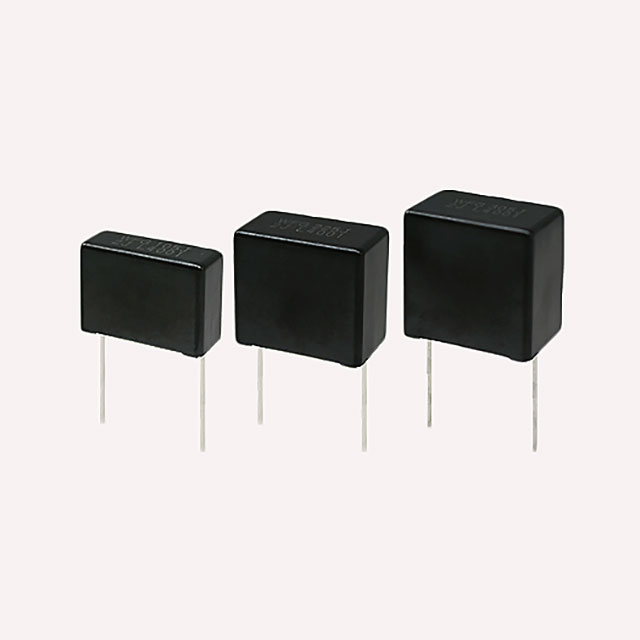

ECW-FG Series

Manufacturer: Panasonic Electronic Components

Catalog

Catalog

CAP FILM 2.2UF 5% 1.1KVDC RAD

...

Part	Ratings	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Features	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Capacitance	Applications	Mounting Type	Dielectric Material	Height - Seated (Max) [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC
Panasonic Electronic Components ECW-FG1B225J	AEC-Q200	1100 V	1.1 kV	-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	13.5 mm	0.531 in	5 %	1.142 in	29 mm	PC Pins	2.2 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized
Panasonic Electronic Components ECW-FG60755J	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	13.5 mm	0.531 in	5 %	1.142 in	29 mm	PC Pins	7.5 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized
Panasonic Electronic Components ECW-FG60126J	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	17.5 mm	0.689 in	5 %		1.299 in	PC Pins	12 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized	33 mm
Panasonic Electronic Components ECW-FG60565J	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	1.24 in		0.472 "		5 %			PC Pins	5.6 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized		0.984 in	25 mm	12 mm	31.5 mm
Panasonic Electronic Components ECW-FG60395JA	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	10.5 mm	0.413 in	5 %			PC Pins	3.9 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized		0.846 "	21.5 mm
Panasonic Electronic Components ECW-FG60825JA	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	13.5 mm	0.531 in	5 %	1.142 in	29 mm	PC Pins	8.2 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized
Panasonic Electronic Components ECW-FG60705J	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	13.5 mm	0.531 in	5 %	1.142 in	29 mm	PC Pins	7 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized
Panasonic Electronic Components ECW-FG2J155QA	AEC-Q200			-40 C	110 °C	High Temperature	Radial	22.5 mm	0.886 in	27 mm	1.063 in	12 mm	0.472 "	10 %			PC Pins	1500 nF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized		0.846 "	21.5 mm			141 V
Panasonic Electronic Components ECW-FG60126JA	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	17.5 mm	0.689 in	5 %		1.299 in	PC Pins	12 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized	33 mm
Panasonic Electronic Components ECW-FG60805J	AEC-Q200	600 V		-40 C	110 °C	High Temperature	Radial	27.5 mm	1.083 in	31.5 mm	1.24 in	13.5 mm	0.531 in	5 %	1.142 in	29 mm	PC Pins	8 µF	Automotive High Frequency Switching	Through Hole	Polypropylene (PP) Metallized
