74010 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

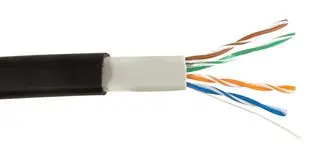

NETWORKING CABLE, ALPHA ESSENTIALS INDUSTRIAL ETHERNET, UNSHIELDED, CAT6, 23 AWG, 500 FT, 152.4 M
| Part | Length | Length | Wire Gauge | Conductor Insulation | Conductor Insulation | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Features | Conductor Material | Usage | Voltage | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 3.05 m 15.24 m 152.4 m | 10 ft 50 ft 500 ft | 23 AWG | Polyolefin | PO | Multi-Pair Cat6 | 12.07 mm | 0.475 in | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 8 | Oil Resistant Rip Cord UV Resistant | Copper Bare | Industrial Network | 300 VDC | Black | -25 °C | 75 ░C | 100 ft | 30.5 m | Solid |
