OPA838 Series

1mA, 300MHz gain bandwidth, voltage-feedback operational amplifier

Catalog

1mA, 300MHz gain bandwidth, voltage-feedback operational amplifier

Part	Package / Case	Current - Input Bias	Number of Circuits	Amplifier Type	Mounting Type	Voltage - Input Offset	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Slew Rate	Supplier Device Package	Current - Supply	Output Type	Voltage - Supply Span (Min) [Min]	Supplied Contents	-3db Bandwidth	Board Type	Channels per IC	Current - Supply (Main IC)	Current - Output / Channel [custom]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]
Texas Instruments OPA838SIDCKT	6-TSSOP SC-88 SOT-363	1.5 µA	1	Voltage Feedback	Surface Mount	15 µV	300 MHz	125 °C	-40 °C	5.4 V	350 V/µs	SC-70-6	960 µA	Rail-to-Rail	2.7 V
Texas Instruments OPA838IDCKR	5-TSSOP SC-70-5 SOT-353	1.5 µA	1	Voltage Feedback	Surface Mount	15 µV	300 MHz	125 °C	-40 °C	5.4 V	350 V/µs	SC-70-5	960 µA	Rail-to-Rail	2.7 V
Texas Instruments OPA838IDBVR	SOT-23-6	1.5 µA	1	Voltage Feedback	Surface Mount	15 µV	300 MHz	125 °C	-40 °C	5.4 V	350 V/µs	SOT-23-6	960 µA	Rail-to-Rail	2.7 V

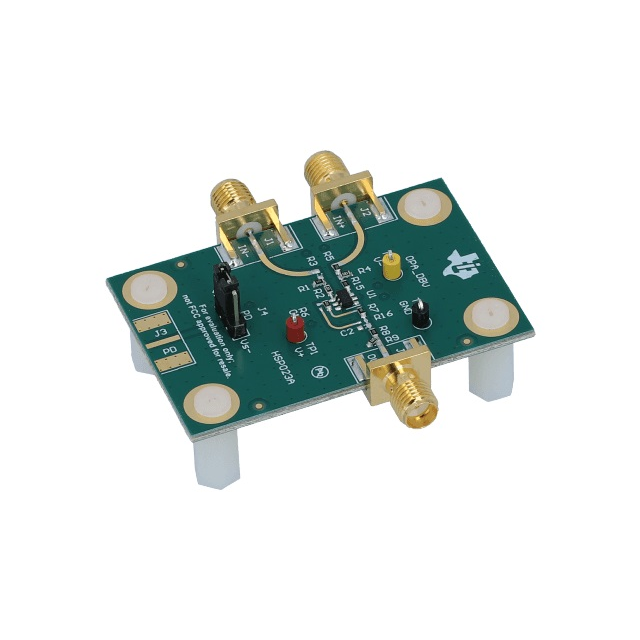

Texas Instruments OPA838DBVEVM				General Purpose							350 V/µs			Rail-to-Rail Single-Ended		Board(s)	90 MHz	Fully Populated	1 - Single	960 µA	40 mA	2.7 V 5.4 V	-1.35 V 2.7 V
Texas Instruments OPA838DCKEVM				General Purpose							350 V/µs			Rail-to-Rail Single-Ended		Board(s)	90 MHz	Fully Populated	1 - Single	960 µA	40 mA	2.7 V 5.4 V	-1.35 V 2.7 V
Texas Instruments OPA838IDBVT	SOT-23-6	1.5 µA	1	Voltage Feedback	Surface Mount	15 µV	300 MHz	125 °C	-40 °C	5.4 V	350 V/µs	SOT-23-6	960 µA	Rail-to-Rail	2.7 V

Catalog

1mA, 300MHz gain bandwidth, voltage-feedback operational amplifier

Key Features

• Gain bandwidth product: 300MHzVery-low (trimmed) supply current: 950µABandwidth: 90MHz (AV = 6V/V)High full-power bandwidth: 45MHz, 4VPPNegative rail input, rail-to-rail outputSingle-supply operating range: 2.7V to 5.4V25°C input offset: ±125µV (maximum)Input offset voltage drift: < ±1.6µV/°C (maximum)Input voltage noise: 1.8nV/√Hz (> 200Hz)Input current noise: 1pA/√Hz (> 2000Hz)< 1µA shutdown current for power savingsGain bandwidth product: 300MHzVery-low (trimmed) supply current: 950µABandwidth: 90MHz (AV = 6V/V)High full-power bandwidth: 45MHz, 4VPPNegative rail input, rail-to-rail outputSingle-supply operating range: 2.7V to 5.4V25°C input offset: ±125µV (maximum)Input offset voltage drift: < ±1.6µV/°C (maximum)Input voltage noise: 1.8nV/√Hz (> 200Hz)Input current noise: 1pA/√Hz (> 2000Hz)< 1µA shutdown current for power savings

Description

The OPA838 decompensated voltage-feedback operational amplifier provides a high, 300MHz gain bandwidth product with 1.8nV/√Hz input noise voltage, requiring only a trimmed 0.95mA supply current. These features combine to provide an extremely power-efficient device for photodiode transimpedance designs and high-voltage gain stages, which require the lowest input voltage noise in signal receiver applications. Operating at the minimum recommended noninverting gain of 6V/V results in a 90MHz, –3dB bandwidth. Extremely low input noise and offset voltage make the OPA838 an excellent choice for high gains. Even at a dc-coupled gain of 1000V/V, a 300kHz signal bandwidth is available with a maximum output offset voltage of ±125mV. The single-channel OPA838 is available in 6-pin SOT-23, 6-pin SC70, and 8-pin X2QFN packages, all with a power shutdown feature. The OPA838 is also available in a 5-pin SC70 package. The OPA838 decompensated voltage-feedback operational amplifier provides a high, 300MHz gain bandwidth product with 1.8nV/√Hz input noise voltage, requiring only a trimmed 0.95mA supply current. These features combine to provide an extremely power-efficient device for photodiode transimpedance designs and high-voltage gain stages, which require the lowest input voltage noise in signal receiver applications. Operating at the minimum recommended noninverting gain of 6V/V results in a 90MHz, –3dB bandwidth. Extremely low input noise and offset voltage make the OPA838 an excellent choice for high gains. Even at a dc-coupled gain of 1000V/V, a 300kHz signal bandwidth is available with a maximum output offset voltage of ±125mV. The single-channel OPA838 is available in 6-pin SOT-23, 6-pin SC70, and 8-pin X2QFN packages, all with a power shutdown feature. The OPA838 is also available in a 5-pin SC70 package.
