TPS65232A2 Series

Wide input voltage power management IC (PMIC) in a 6 mm x 6 mm QFN package

Catalog

Wide input voltage power management IC (PMIC) in a 6 mm x 6 mm QFN package

Part	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case	Package / Case	Package / Case [custom]
Texas Instruments TPS65232A0RHAR	Surface Mount	40-VQFN (6x6)	85 °C	22 V	4.75 V	Controller/Converter Satellite Boxes xDSL and Cable Modems	3	3.3 V 6.1 V	0.9 V 3.3 V	40-VFQFN Exposed Pad
Texas Instruments TPS65232A0RHA	Surface Mount	40-VQFN (6x6)	85 °C	22 V	4.75 V	Controller/Converter Satellite Boxes xDSL and Cable Modems	3	3.3 V 6.1 V	0.9 V 3.3 V	40-VFQFN Exposed Pad

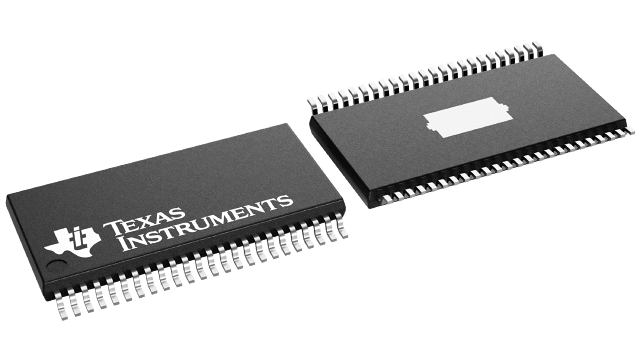

Texas Instruments TPS65232A2DCA	Surface Mount	48-HTSSOP	85 °C	22 V	4.75 V	Controller/Converter Satellite Boxes xDSL and Cable Modems	3	3.3 V 6.1 V	0.9 V 3.3 V	48-PowerTFSOP	0.24 in	6.1 mm
Texas Instruments TPS65232A2DCAR	Surface Mount	48-HTSSOP	85 °C	22 V	4.75 V	Controller/Converter Satellite Boxes xDSL and Cable Modems	3	3.3 V 6.1 V	0.9 V 3.3 V	48-PowerTFSOP	0.24 in	6.1 mm

Catalog

Wide input voltage power management IC (PMIC) in a 6 mm x 6 mm QFN package

Key Features

• Wide Input Supply Voltage Range(10.8 V - 22 V)One Adjustable PWM Buck Controller10.8-V - 22-V Input Voltage Range3.3-V - 6.1-V Output Voltage Range500-kHz Switching FrequencyType III CompensationProgrammable Current LimitTwo Adjustable Step-Down Converter With Integrated Switching FETs:4.75-V - 5.5-V Input0.9-V-3.3-V Output Voltage Range3-A Output Current1-MHz Switching FrequencyType III CompensationPull-Up Current Sources on Buck Enable Pins for AccurateStart-Up Timing Control with Preset DefaultOver Current Protection on All RailsThermal Shutdown to Protect Device During Excessive Power DissipationThermally Enhanced Package for Efficient Heat Management(48-pin HTSSOP or 6-mm × 6-mm 40-Pin QFN)APPLICATIONSxDSL and Cable ModemsWireless Access PointsSTB, DTV, DVD and Home GatewayWide Input Supply Voltage Range(10.8 V - 22 V)One Adjustable PWM Buck Controller10.8-V - 22-V Input Voltage Range3.3-V - 6.1-V Output Voltage Range500-kHz Switching FrequencyType III CompensationProgrammable Current LimitTwo Adjustable Step-Down Converter With Integrated Switching FETs:4.75-V - 5.5-V Input0.9-V-3.3-V Output Voltage Range3-A Output Current1-MHz Switching FrequencyType III CompensationPull-Up Current Sources on Buck Enable Pins for AccurateStart-Up Timing Control with Preset DefaultOver Current Protection on All RailsThermal Shutdown to Protect Device During Excessive Power DissipationThermally Enhanced Package for Efficient Heat Management(48-pin HTSSOP or 6-mm × 6-mm 40-Pin QFN)APPLICATIONSxDSL and Cable ModemsWireless Access PointsSTB, DTV, DVD and Home Gateway

Description

The TPS65232 provides one PWM buck controller, two adjustable, synchronous buck regulators. The SMPS have integrated switching FETs for optimized power efficiency and reduced external component count. All power blocks have thermal and over current/short circuit protection. The TPS65232 startup timing can be controlled through buck enable pins. The buck controller and buck converters have internal pole/zero pairs to help stabilizing the system with minimum external components. The TPS65232 provides one PWM buck controller, two adjustable, synchronous buck regulators. The SMPS have integrated switching FETs for optimized power efficiency and reduced external component count. All power blocks have thermal and over current/short circuit protection. The TPS65232 startup timing can be controlled through buck enable pins. The buck controller and buck converters have internal pole/zero pairs to help stabilizing the system with minimum external components.
