316-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K

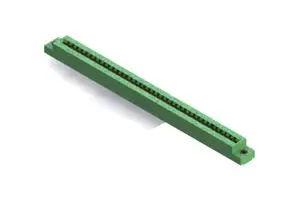

CONN EDGE DUAL FMALE 76POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Rows [custom] | Pitch | Pitch | Gender | Number of Positions/Bay/Row [custom] | Contact Material | Termination | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Panel Mount Through Hole | 76 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Panel Mount Through Hole | 76 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Panel Mount | 76 | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Panel Mount Through Hole | 76 | |||

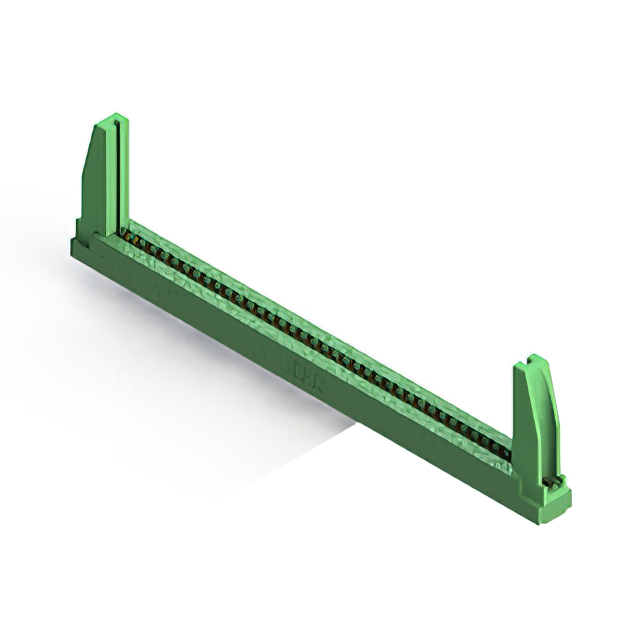

 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Panel Mount Through Hole | 76 | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Panel Mount Through Hole | 76 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Through Hole | 38 | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Panel Mount | 38 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Panel Mount Through Hole | 76 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Cantilever | Non Specified - Dual Edge | -40 C | 105 ░C | Dual | 2 | 3.96 mm | 0.156 in | Female | 38 | Copper Alloy | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Panel Mount Through Hole | 76 |
