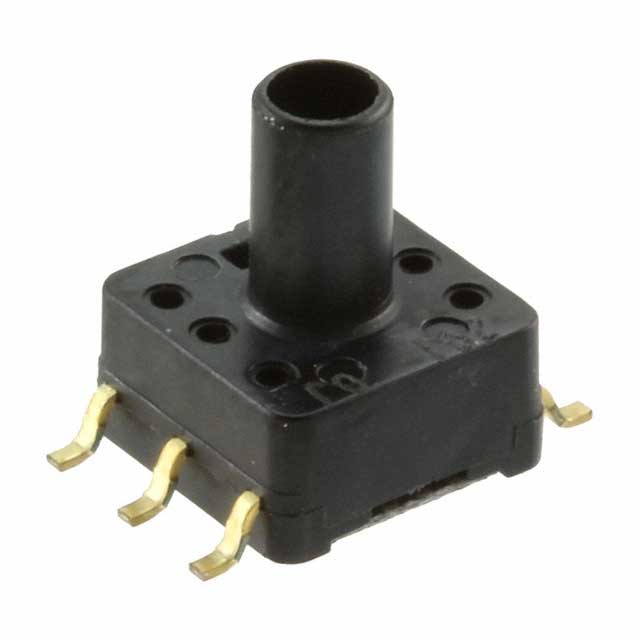

ADP525 Series

Catalog

ADP5(PS-A) (DIP ROHS COMPLIANT: YES

Part	Features	Mounting Type	Output Type	Port Size	Port Size	Port Size	Package / Case	Port Style	Output [Max]	Output [Min]	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure	Operating Pressure	Pressure Type	Termination Style	Maximum Pressure	Maximum Pressure [Max]	Applications
Panasonic Electronic Components ADP5250	Amplified Output Temperature Compensated	Surface Mount	Wheatstone Bridge	3 mm	0.12 in	Male Tube	6-SMD Module	Barbless	4.5 V	0 mV	1.5 %	-10 °C	60 °C	2 bar	29.01 PSI	Vented Gauge	Gull Wing	400 kPa	58.02 PSI	Board Mount
Panasonic Electronic Components ADP5251	Amplified Output Temperature Compensated	Surface Mount	Wheatstone Bridge	3 mm	0.12 in	Male Tube	6-SMD Module	Barbless	4.5 V	0 mV	1.5 %	-10 °C	60 °C	2 bar	29.01 PSI	Vented Gauge	Gull Wing	400 kPa	58.02 PSI	Board Mount
