9WL Type Series

DC Fans Axial Fan, 60x60x25mm, 24VDC, Splash/Dust Proof, Long Life 180Khr, Ribless, IP68

Catalog

DC Fans Axial Fan, 60x60x25mm, 24VDC, Splash/Dust Proof, Long Life 180Khr, Ribless, IP68

Part	Material - Frame	Material - Blade	Bearing Type	Termination	Approval Agency	Voltage - Rated	Width [y]	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [x]	Power (Watts)	Features	Size / Dimension [y]	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Current Rating (Amps)	RPM	Ingress Protection	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Lifetime @ Temp.
Sanyo Denki America Inc. 9WL0624S4002	Aluminum	Plastic	Ball	2 Wire Leads	cURus TUV	24 VDC	25 mm	Tubeaxial	60 mm	60 mm

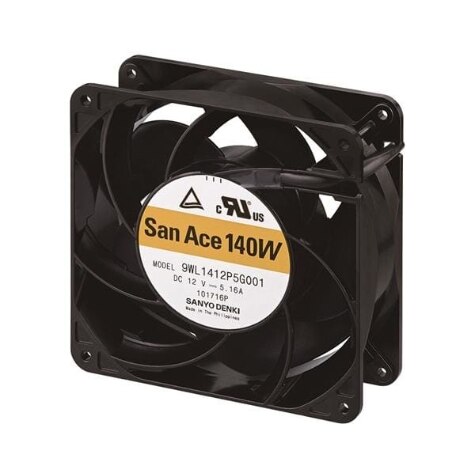

Sanyo Denki America Inc. 9WL1448H5001	Aluminum	Plastic	Ball	3 Wire Leads		48 VDC		Tubeaxial		140 mm	51 mm	14.9 W	Speed Sensor (Tach)	140 mm
Sanyo Denki America Inc. 9WL1448M5001	Aluminum	Plastic	Ball	3 Wire Leads	cURus TUV	48 VDC		Tubeaxial		140 mm	51 mm	7.2 W	Locked Rotor Protection Speed Sensor (Tach)	140 mm	55.2 VDC	40.8 VDC	Varies Based on Temperature	150 mA	2600 RPM	IP68 - Dust Tight Waterproof	40 dB(A)	109.5 CFM	3.07 m³/min	99.6 Pa	0.4 in H2O	-20 ░C	70 °C

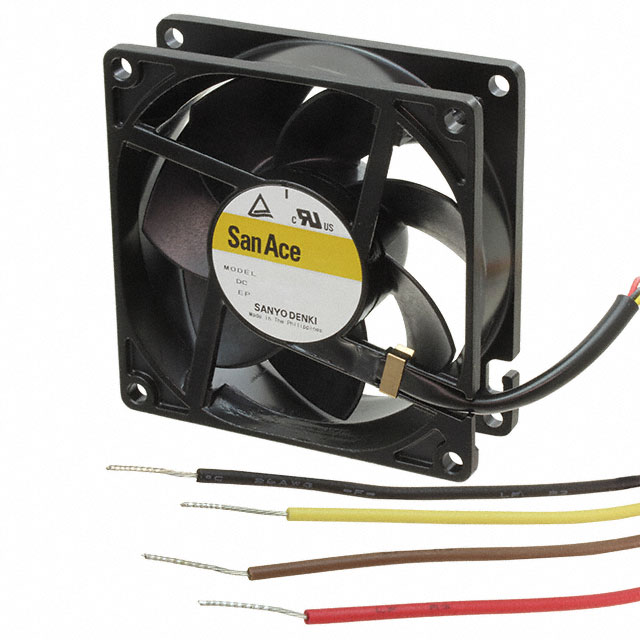

Sanyo Denki America Inc. 9WL0812P4H001			Ball	4 Wire Leads	CSA TUV UL	12 VDC	25 mm	Tubeaxial	80 mm	80 mm		1.44 W	PWM Control Speed Sensor (Tach)						3700 RPM	IP68 - Dust Tight Waterproof	31 dB(A)	36.3 CFM	1.02 m³/min	42.3 Pa	0.17 in H2O	-20 ░C	70 °C	150.14 g	0.331 lb
Sanyo Denki America Inc. 9WL0912M4001	Aluminum	Plastic	Ball	3 Wire Leads	cURus TUV	12 VDC	25 mm	Tubeaxial		92 mm		960 mW	Locked Rotor Protection Speed Sensor (Tach)	92 mm	13.8 VDC	10.2 VDC	Varies Based on Temperature		2400 RPM	IP68 - Dust Tight Waterproof	24 dB	37.1 CFM	1.04 mł/min	24 Pa	0.097 in H2O	-20 ░C	70 °C
Sanyo Denki America Inc. 9WL1424G5D001	Aluminum	Plastic	Ball	3 Wire Leads	cURus TUV	24 VDC		Tubeaxial		140 mm	51 mm		Locked Rotor Sensor	140 mm						IP68 - Dust Tight Waterproof
Sanyo Denki America Inc. 9WL0812H4001	Aluminum	Plastic	Ball	3 Wire Leads		12 VDC	25 mm	Tubeaxial	80 mm	80 mm		1.44 W	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WL0824P4J001	Aluminum	Plastic	Ball	4 Wire Leads	CSA TUV UL	24 VDC	25 mm	Tubeaxial	80 mm	80 mm		6.72 W	PWM Control Speed Sensor (Tach)		26.4 VDC	21.6 VDC		0.28 A	7400 RPM	IP68 - Dust Tight Waterproof	49 dB	73 CFM	2.04 m³/min	176.9 Pa	0.71 in H2O	-20 ░C	70 °C	150.14 g	0.331 lb	180000 Hrs
Sanyo Denki America Inc. 9WL1412H5D001	Aluminum	Plastic	Ball	3 Wire Leads	cURus TUV	12 VDC		Tubeaxial		140 mm	51 mm		Locked Rotor Sensor	140 mm						IP68 - Dust Tight Waterproof
Sanyo Denki America Inc. 9WL0924H4002	Aluminum	Plastic	Ball	2 Wire Leads		24 VDC	25 mm	Tubeaxial		92 mm		1.68 W		92 mm
