10051922 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FPC BOTTOM 10POS 0.5MM R/A
| Part | Mating Cycles | Actuator Color | Current Rating (Amps) | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Flat Flex Type | Height Above Board | Height Above Board | Actuator Material | Number of Positions | Locking Feature | Voltage Rating | Features | FFC, FCB Thickness | Contact Finish | Material Flammability Rating | Connector/Contact Type | Housing Material | Mounting Type | Cable End Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

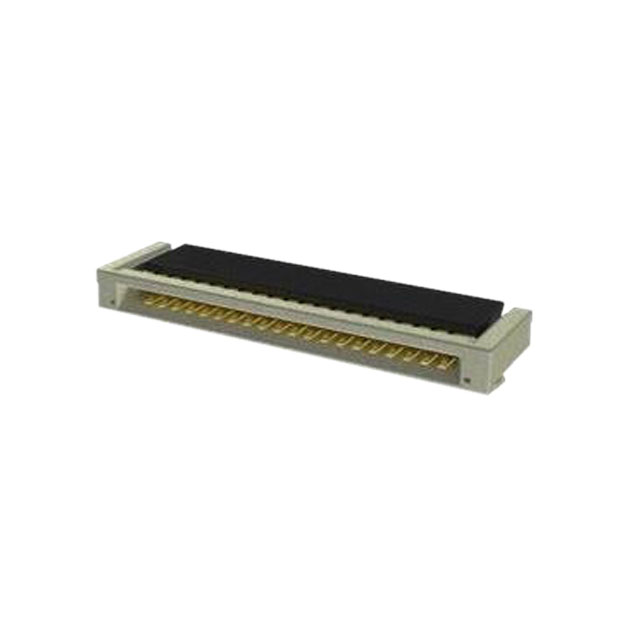

 Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 10 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |
Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 16 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |

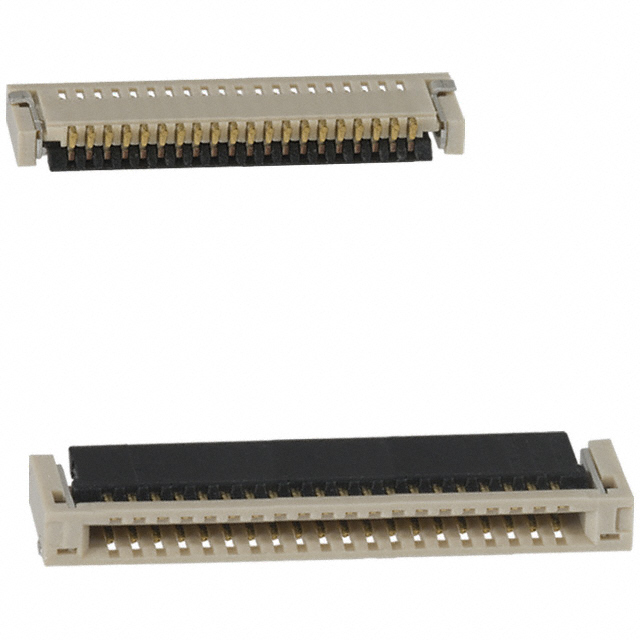

 Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 20 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |
Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 22 | Flip Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Tabbed | 0.02 " | 0.5 mm |
 Amphenol ICC (FCI) | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | 11 | Backlock Flip Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Tapered | 0.02 " | 0.5 mm | |

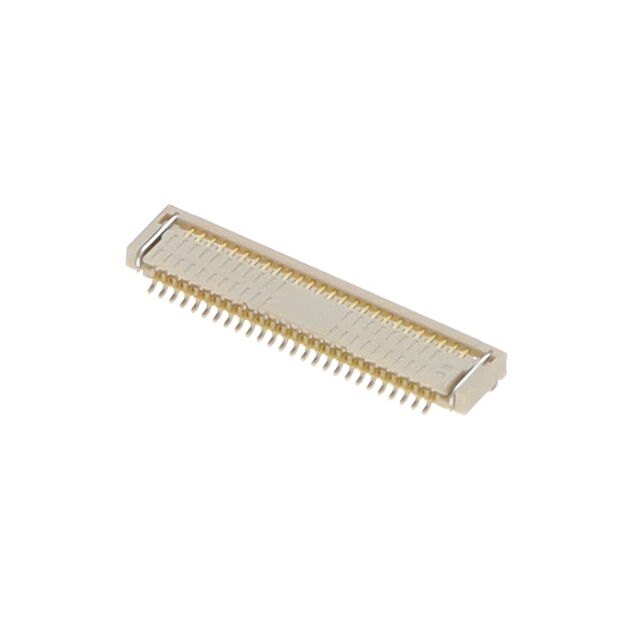

 Amphenol ICC (FCI) | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | 26 | Backlock Flip Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Tapered | 0.02 " | 0.5 mm | |

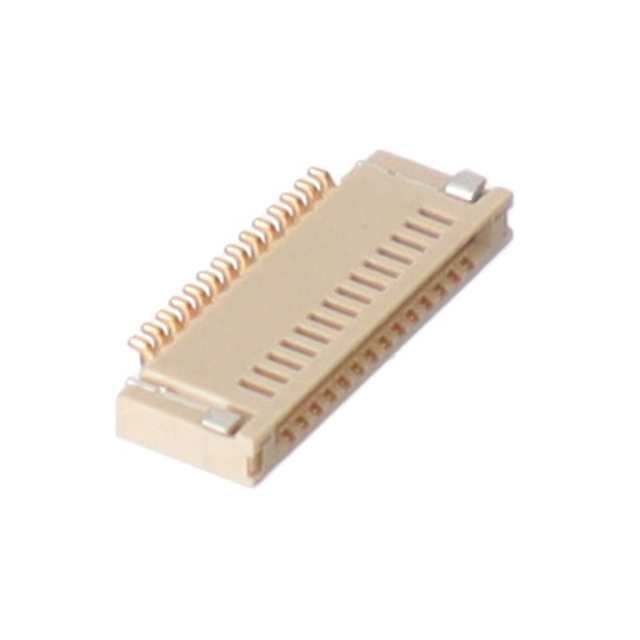

 Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 14 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |
 Amphenol ICC (FCI) | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | 15 | Backlock Flip Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Tapered | 0.02 " | 0.5 mm | |

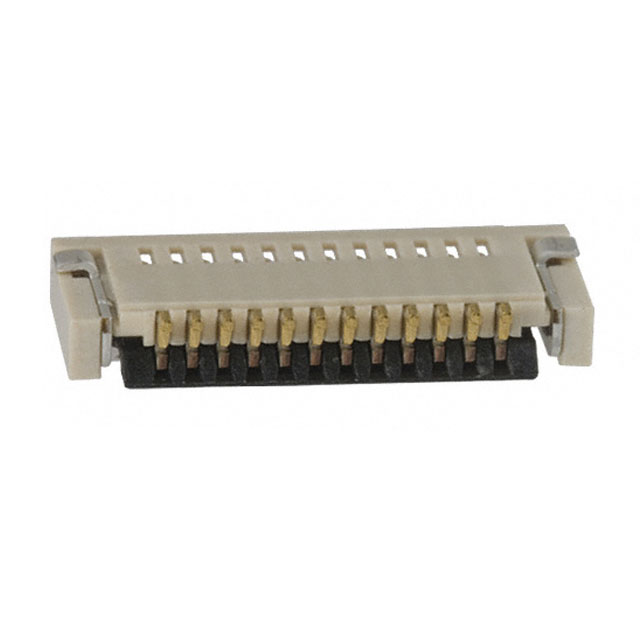

 Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Nylon 9T Polyamide (PA9T) | 12 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |
Amphenol ICC (FCI) | 20 | Black | 0.5 A | Natural | -55 C | 85 °C | Copper Alloy | Solder | FPC | 0.051 in | 1.3 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 12 | Slide Lock | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Gold | UL94 V-0 | Contacts Bottom | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight | 0.02 " | 0.5 mm |
