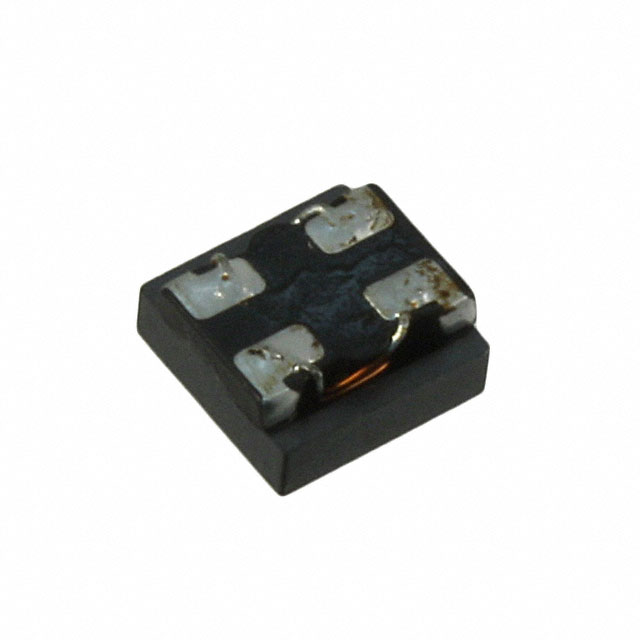

DLW5BTN Series

Catalog

CMC 5A 2LN 250 OHM SMD

Part	Mounting Type	Voltage Rating - DC	Impedance @ Frequency	Current Rating (Max) [Max]	Filter Type	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	DC Resistance (DCR) (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]
Murata Electronics DLW5BTN251SQ2L	Surface Mount	50 VDC	250 Ohms	5 A	Power Signal Line	2	85 °C	-40 C	0.197 in	0.197 "	5 mm	5 mm	Horizontal 4 J-Lead	14 mOhm	2.5 mm	0.098 in
Murata Electronics DLW5BTN102SQ2L	Surface Mount	50 VDC	1 kOhms	2 A	Power Signal Line	2	85 °C	-40 C	0.197 in	0.197 "	5 mm	5 mm	Horizontal 4 J-Lead	24 mOhm	2.5 mm	0.098 in
Murata Electronics DLW5BTN142SQ2L	Surface Mount	50 VDC	1.4 kOhms	1.5 A	Power Signal Line	2	85 °C	-40 C	0.197 in	0.197 "	5 mm	5 mm	Horizontal 4 J-Lead	40 mOhm	2.5 mm	0.098 in
