BD9111 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

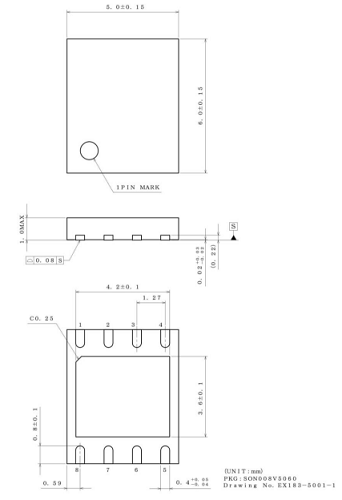

IC REG BUCK 3.3V 2A SON008V5060
| Part | Current - Output | Output Configuration | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Synchronous Rectifier | Function | Topology | Number of Outputs | Voltage - Input (Min) [Min] | Frequency - Switching | Package / Case | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 2 A | Positive | SON008V5060 | Surface Mount | -25 °C | 105 ¯C | Step-Down | Buck | 1 | 4.5 V | 1 MHz | 8-VDFN Exposed Pad | 3.3 V | 5.5 V |
