EV_ICM Series

Catalog

EVAL BOARD

Part	Sensor Type	Supplied Contents	Interface	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Range	Contents	Sensing Range [Min] [custom]	Sensing Range [Min] [custom]	Sensing Range [custom]	Sensing Range [custom]	Sensing Range [Max] [custom]	Sensing Range [Max] [custom]	Sensing Range [Min]	Sensing Range [Max]
TDK Corporation EV_ICM-20609	3 Axis Accelerometer Gyroscope	Board(s)	I2C Serial SPI	ICM-20609	1.71 V	3.45 V	2 g 4 g 8 g 16 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec	Board(s)
TDK Corporation EV_ICM-20601	3 Axis Accelerometer Gyroscope	Board(s)	I2C Serial SPI	ICM-20601	1.71 V	3.45 V		Board(s)	-4000 °/sec -500 °/sec	-4 g	1000 °/sec 2000 °/sec	8 g 16 g 32 g	4 g	500 °/sec 4000 °/sec

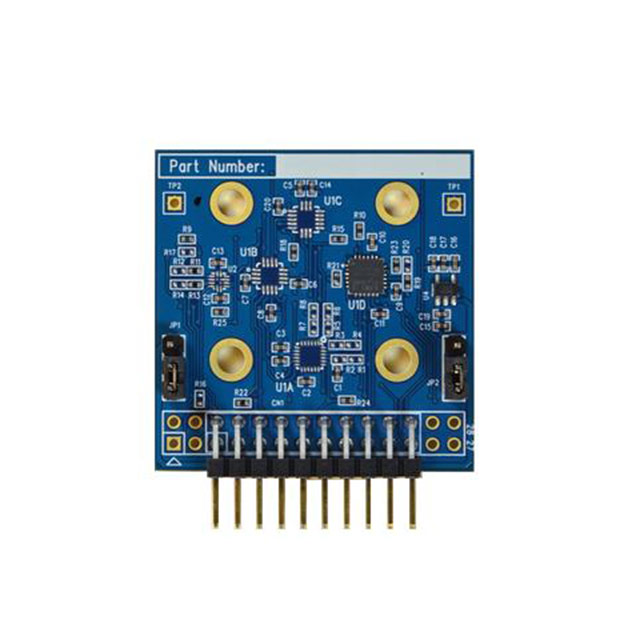

TDK Corporation EV_ICM-20948	Accelerometer Gyroscope Magnetometer			ICM-20948			4 g 8 g 16 g	Board(s)							-4900 µT -2000 °/sec -1000 °/sec -500 °/s -250 °/sec -2 g	2 g 250 °/sec 500 °/s 1000 °/sec 2000 °/sec 4900 µT

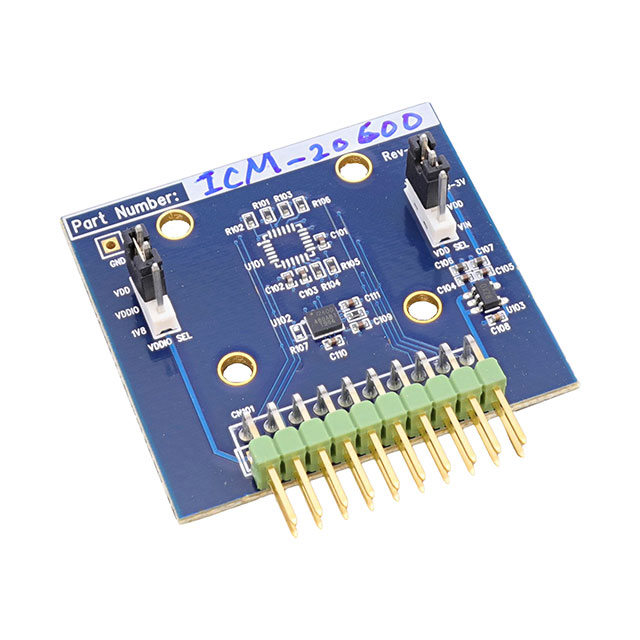

TDK Corporation EV_ICM-20600	3 Axis Accelerometer Gyroscope	Board(s)	I2C Serial SPI	ICM-20600	1.71 V	3.45 V	2 g 4 g 8 g 16 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec	Board(s)
TDK Corporation EV_ICM-20689	3 Axis Accelerometer Gyroscope	Board(s)	I2C Serial SPI	ICM-20689	1.71 V	3.45 V	2 g 4 g 8 g 16 g 250 °/sec 500 °/sec 1000 °/sec 2000 °/sec	Board(s)
