90173 Series
Manufacturer: Preci-Dip
Beta
⌘K

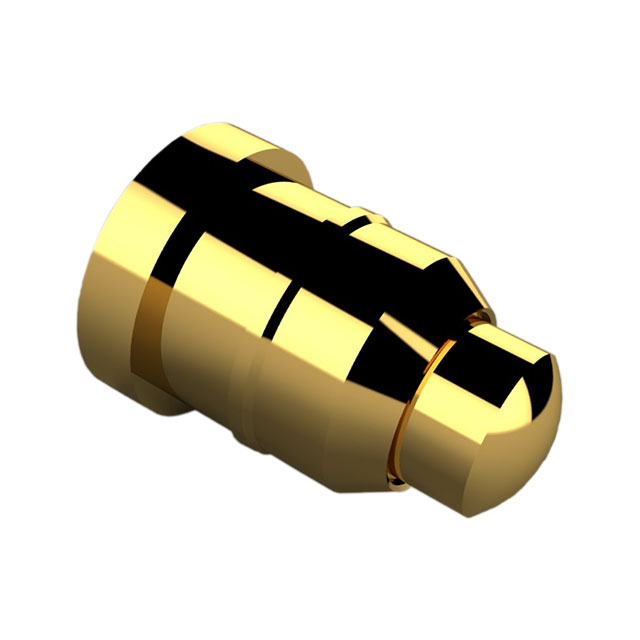

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Contact Type | Mating Cycles | Contact Finish | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 86.68 gf | 1.76 mm | 0.069 in | Sleeve & Plunger (Pogo Pins) | 40000 | Gold | 40.79 gf | 2.54 mm | 0.1 " | 2 A | 1 mm | 0.039 in | 0.25 Ám | 10 Áin | Surface Mount | Brass Alloy | 0.077 in | 1.95 mm |
