RAZ Series
Manufacturer: Pulse Electronics
Beta
⌘K

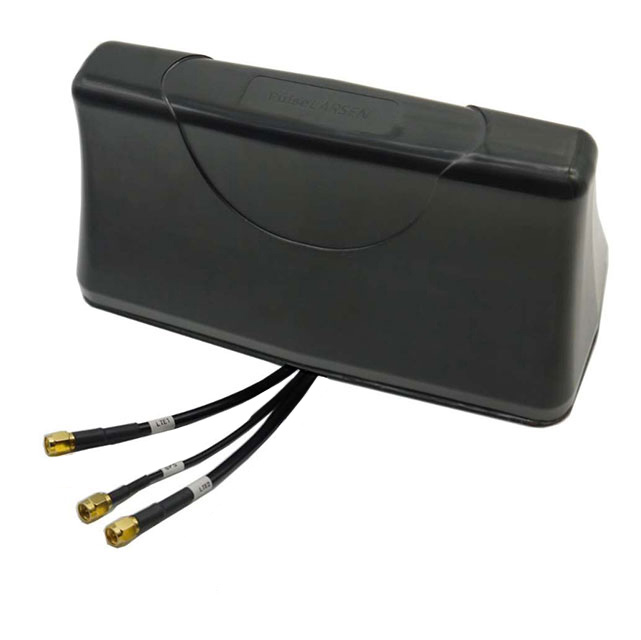

ANTENNAS VEHICULAR ANT BLACK 2LTE 1GNSS
| Part | Features | VSWR | Mounting Type | Frequency (Center/Band) | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 1 | RF Family/Standard | Gain | Ingress Protection | Frequency Range (Band 1) Minimum | Frequency Range (Band 3) Maximum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 3) Minimum | Termination Type | Termination Count (SMA Male) | Frequency Group | Applications | Power - Max | Antenna Type | Number of Bands | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 5.18M Cable LNA | 2 | Panel Mount | 1.582GHz 2.2GHz 802MHz | 1.582 GHz | 2.2 GHz | 802 MHz | Cellular Navigation | 4.6 dBi 4.9 dBi 6 dBi 6.6 dBi | IP67 | 644 MHz | 2.69 GHz | 960 MHz | 1.559 GHz | 1.606 GHz | 1.71 GHz | SMA Male | 3 | Wide Band | GPS LTE | 45 W | Module | 3 | 3.644 in |
 Pulse Electronics | 5.18M Cable LNA | 2 | Panel Mount | 1.582GHz 2.2GHz 802MHz | 1.582 GHz | 2.2 GHz | 802 MHz | Cellular Navigation | 4.6 dBi 4.9 dBi 6 dBi 6.6 dBi | IP67 | 644 MHz | 2.69 GHz | 960 MHz | 1.559 GHz | 1.606 GHz | 1.71 GHz | SMA Male | 3 | Wide Band | GPS LTE | 45 W | Module | 3 | 3.644 in |
