51025 Series

Manufacturer: CNC Tech

Catalog

WIRE-TO BOARD WAFER, 2.5MM, 5 CO

Part	Insulation Height	Insulation Height	Contact Material	Insulation Material	Number of Rows	Contact Shape	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Color	Connector Type	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Shrouding	Voltage Rating	Fastening Type	Contact Type	Termination	Contact Finish - Post	Number of Positions Loaded

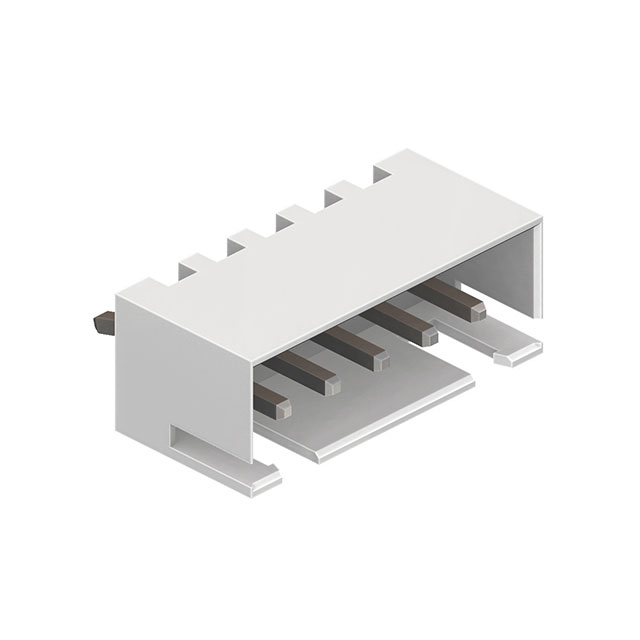

CNC Tech 51025-05-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	5	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All

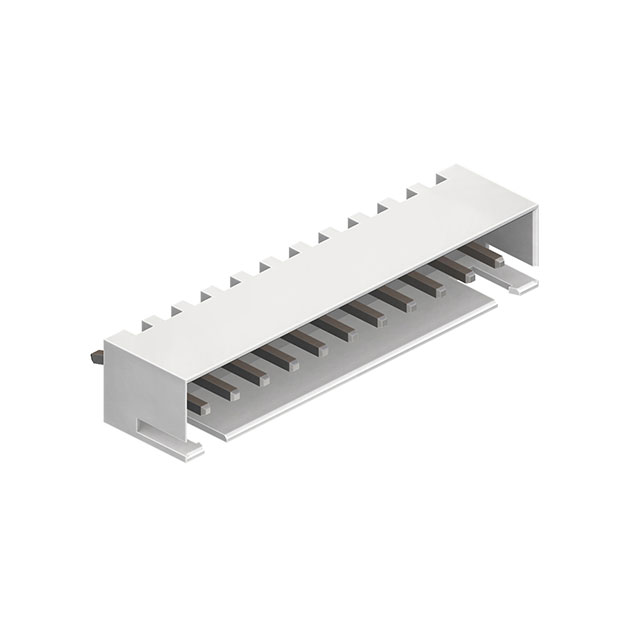

CNC Tech 51025-11-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	11	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All

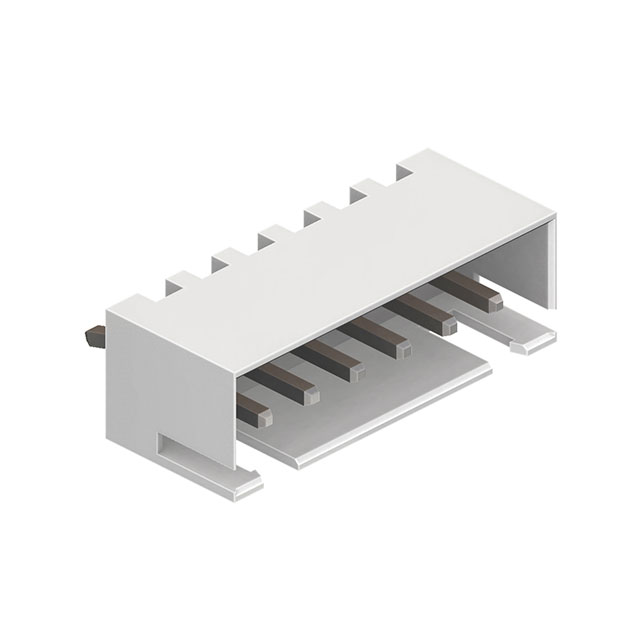

CNC Tech 51025-06-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	6	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All
CNC Tech 51025-07-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	7	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All
CNC Tech 51025-09-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	9	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All

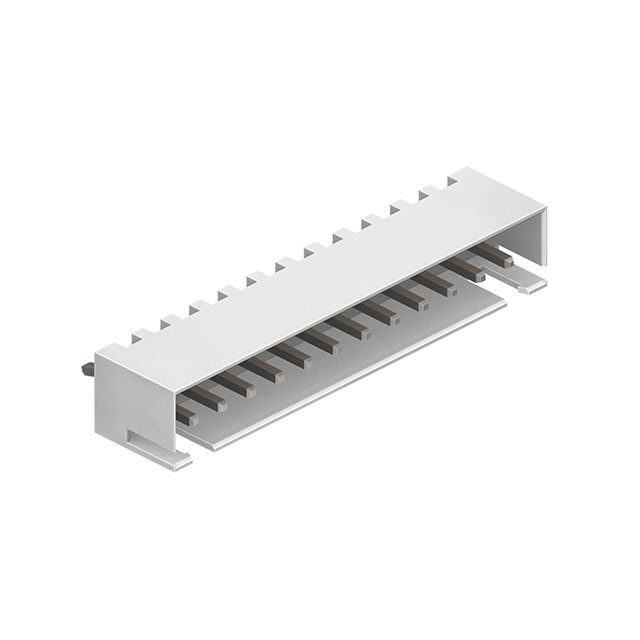

CNC Tech 51025-12-0100-01	0.276 in	7 mm	Brass	Nylon 6/6 Polyamide (PA66)	1	Square	Through Hole	85 °C	-25 °C	Board to Cable/Wire	White	Header	0.134 "	3.4 mm	12	2.5 mm	0.098 in	UL94 V-0	3 A	Shrouded - 4 Wall	250 V	Detent Lock	Male Pin	Kinked Pin Solder	Tin	All
