CK45 Series

Catalog

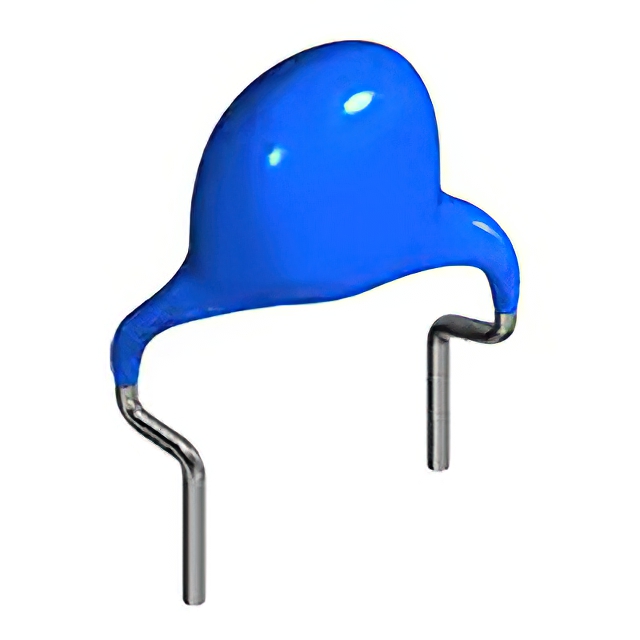

CERAMIC DISC CAPACITORS D: 5.5MM 1KV 220PF B 10% LS:5MM

Part	Features	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Lead Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance [Max]	Tolerance [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TDK Corporation CK45-B3AD221KYGNA	High Voltage	B	1 kV	1000 V	220 pF	0.197 "	5 mm	0.374 "	9.5 mm	10 %	Formed Leads - Kinked	5.5 mm	0.217 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C
TDK Corporation CK45-B3DD151KYGNA	High Voltage	B	2 kV	2000 V	150 pF	0.197 "	5 mm	0.374 "	9.5 mm	10 %	Formed Leads - Kinked	5.5 mm	0.217 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C
TDK Corporation CK45-E3AD222ZYVNA	High Voltage	E	1 kV	1000 V	2200 pF	0.197 "	5 mm	0.413 "	10.5 mm		Formed Leads - Kinked			Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C	80 %	-20 %
TDK Corporation CK45-B3AD101KYNNA	High Voltage	B	1 kV	1000 V	100 pF	0.197 "	5 mm	0.374 "	9.5 mm	10 %	Formed Leads - Kinked	5.5 mm	0.217 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C
TDK Corporation CK45-B3FD222KYGNA	High Voltage	B	3 kV	3000 V	2200 pF	0.295 in	7.5 mm			10 %	Formed Leads - Kinked	12.5 mm	0.492 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C			0.65 in	16.5 mm
TDK Corporation CK45-B3FD152KYNNA	High Voltage	B	3 kV	3000 V	1500 pF	0.295 in	7.5 mm	0.571 "	14.5 mm	10 %	Formed Leads - Kinked	10.5 mm	0.413 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C
TDK Corporation CK45-E3DD471ZYNNA	High Voltage	E	2 kV	2000 V	470 pF	0.197 "	5 mm	0.374 "	9.5 mm		Formed Leads - Kinked	5.5 mm	0.217 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C	80 %	-20 %
TDK Corporation CK45-B3DD472KYVNA	High Voltage	B	2 kV	2000 V	0.0047 µF	0.295 in	7.5 mm			10 %	Formed Leads - Kinked			Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C			0.709 in	18 mm
TDK Corporation CK45-B3FD102KYVNA	High Voltage	B	3 kV	3000 V	0.001 µF	0.295 in	7.5 mm			10 %	Formed Leads - Kinked	9 mm	0.354 in	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C			0.512 "	13 mm
TDK Corporation CK45-B3AD332KYNNA	High Voltage	B	1 kV	1000 V	0.0033 µF	0.197 "	5 mm	0.531 in	13.5 mm	10 %	Formed Leads - Kinked	9.5 mm	0.374 Dia	Through Hole	Disc Radial	General Purpose	105 ░C	-25 °C
