3151 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

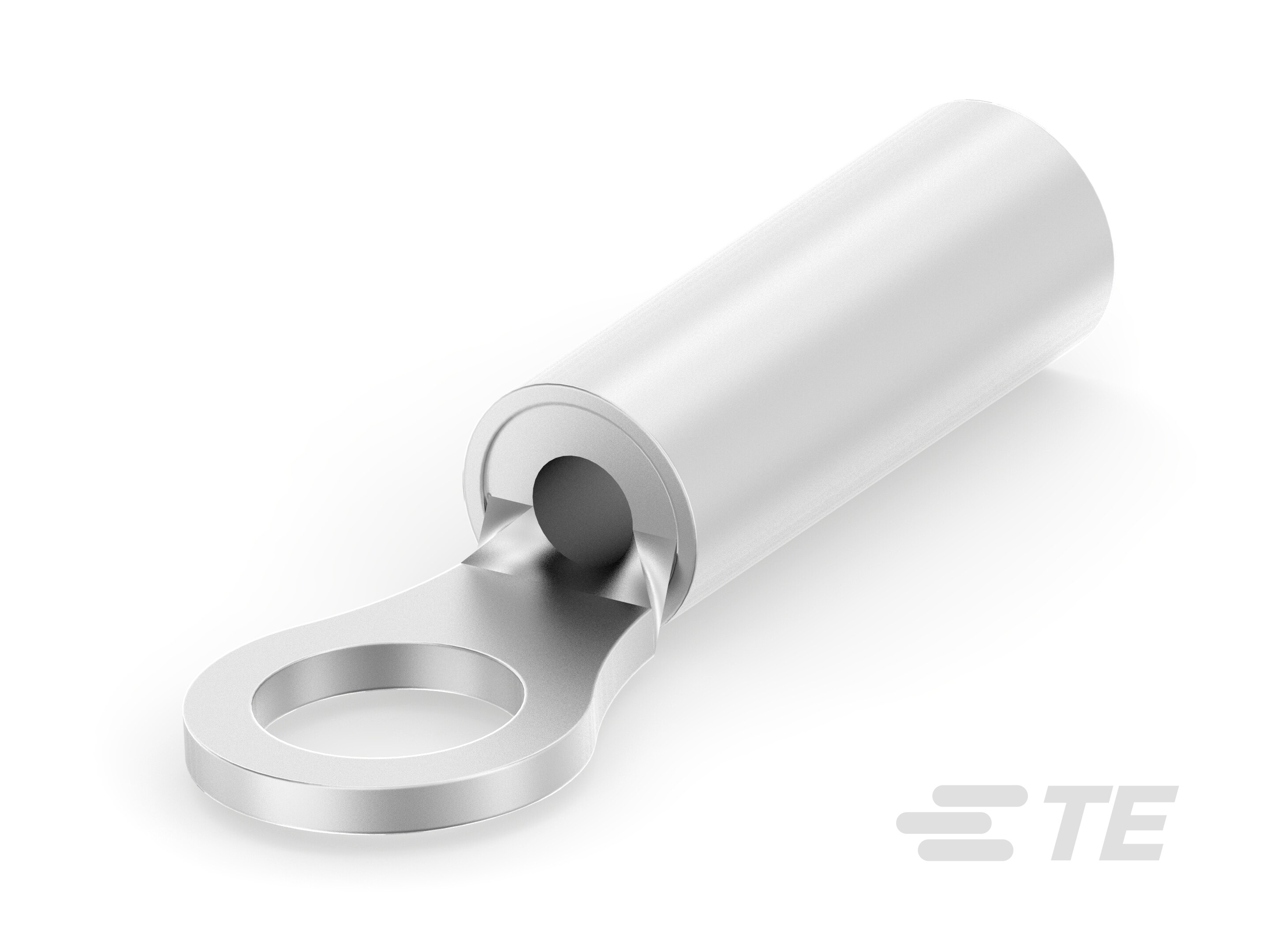

TERMINAL,DG R 26-22 2
| Part | Contact Finish | Thickness [custom] | Thickness [custom] | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Terminal Type | Length - Overall [x] | Length - Overall [x] | Features | Insulation | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 0.46 mm | 0.018 in | 3.56 mm | 0.14 in | 0.082 " | 2.08 mm | 0.05 in | 1.27 mm | Free Hanging (In-Line) | Crimp | 22 AWG | 26 AWG | Copper | Circular | 0.464 " | 11.79 mm | Serrated Termination | Non-Insulated | 2 Stud |
