1775444 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 10 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.059 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, NATURAL INSULATOR

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Voltage Rating	Termination	Contact Finish - Post	Mounting Type	Insulation Material	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Material	Applications	Material Flammability Rating	Contact Shape	Style	Number of Positions	Number of Rows	Shrouding	Contact Type

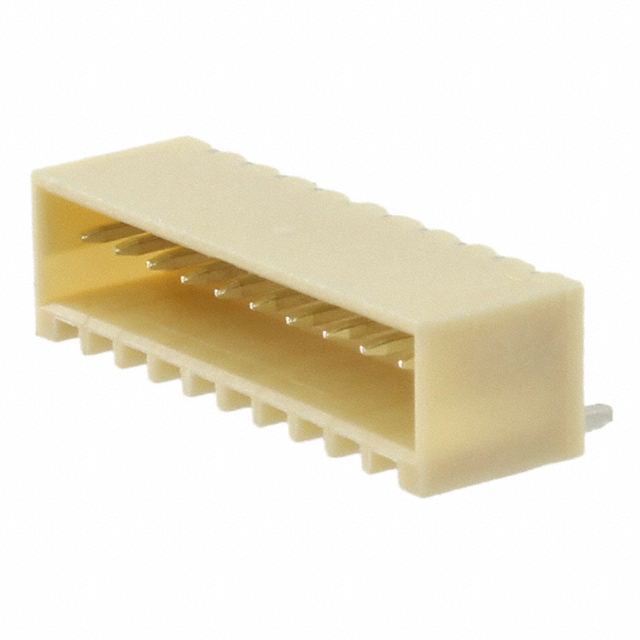

TE Connectivity Raychem Cable Protection 6-1775444-0	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	10	1	Shrouded - 4 Wall	Male Pin

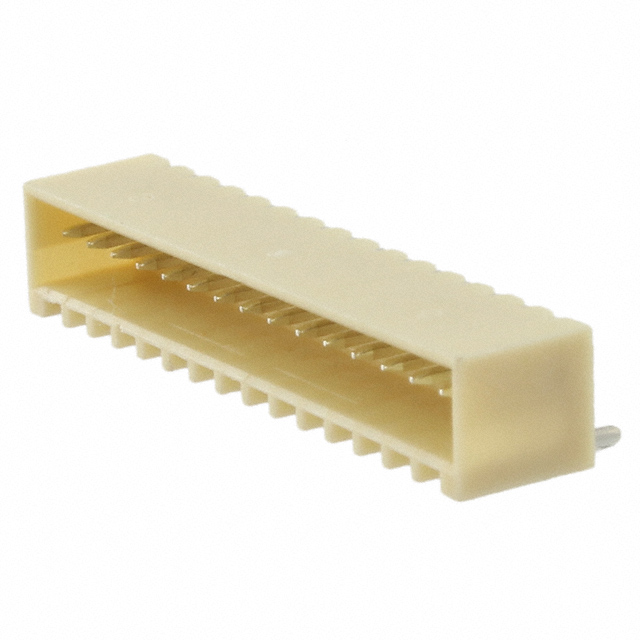

TE Connectivity Raychem Cable Protection 6-1775444-5	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	15	1	Shrouded - 4 Wall	Male Pin

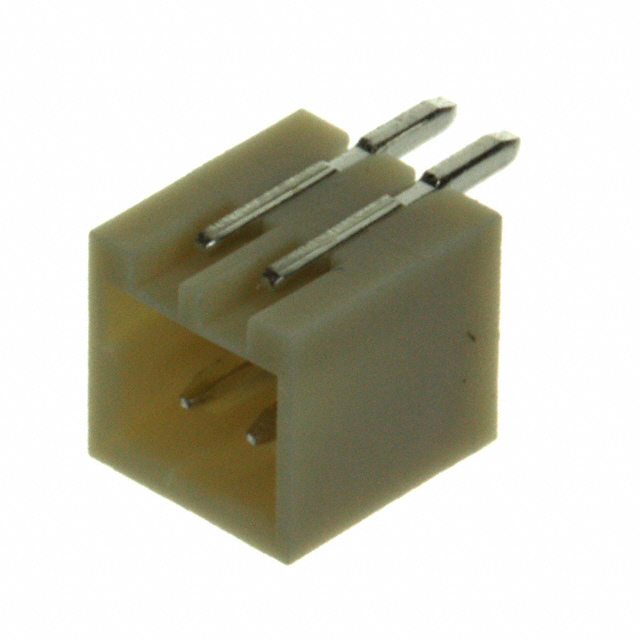

TE Connectivity Raychem Cable Protection 1775444-2	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	2	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 6-1775444-3	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	13	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 5-1775444-8	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	8	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 1-1775444-2	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	12	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 5-1775444-6	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	6	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 1775444-4	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	4	1	Shrouded - 4 Wall	Male Pin

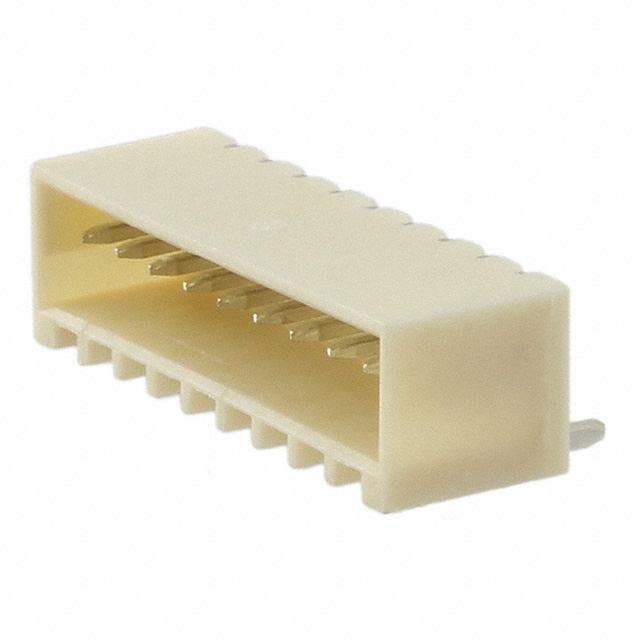

TE Connectivity Raychem Cable Protection 5-1775444-9	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	9	1	Shrouded - 4 Wall	Male Pin
TE Connectivity Raychem Cable Protection 6-1775444-1	All	2.54 çm	100 çin	105 ░C	-55 °C	Header	250 VAC	Solder	Tin	Surface Mount Right Angle	Thermoplastic	3 A	0.106 in	2.7 mm	Natural	4.45 mm	0.175 in	Brass	Automotive General Purpose Industrial Medical	UL94 V-0	Square	Board to Cable/Wire	11	1	Shrouded - 4 Wall	Male Pin
