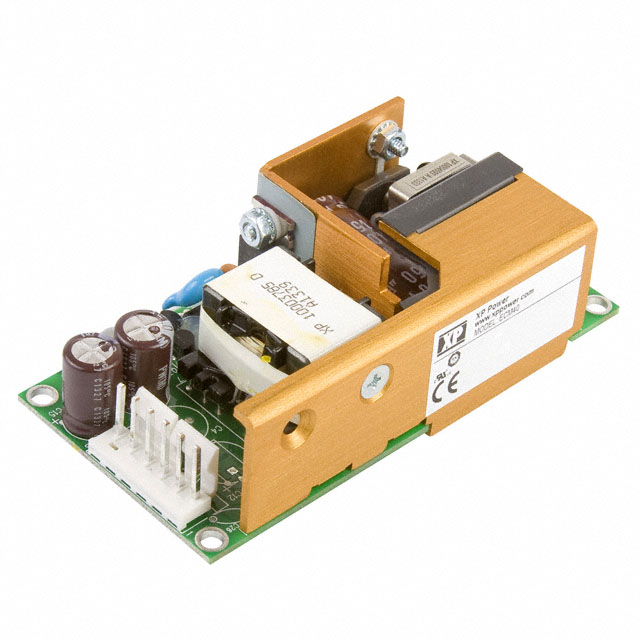

ECM40 Series

Manufacturer: XP Power

Catalog

AC/DC OPEN FRAME POWER SUPPLY, MEDICAL, FIXED, 90 V, 264 V, 40 W, 33 V, 1.2 A ROHS COMPLIANT: YES

Part	Number of Outputs	Current - Output 1	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Features	Type	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Voltage - Isolation	Approval Agency	For Use With/Related Products	Accessory Type	Voltage - Output 3	Voltage - Output 2	Current - Output 2	Current - Output 3
XP Power ECM40US33	1	1.2 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	85 %	33 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	cUL
XP Power ECM40US12	1	3.5 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	80 %	12 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	CB CE
XP Power ECM40US09	1	4.4 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	80 %	9 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	CB CE

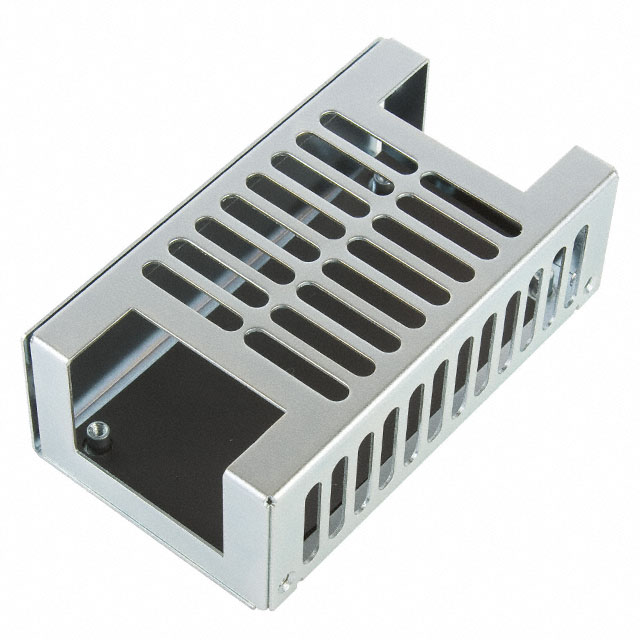

XP Power ECM40/60 COVER																							ECM Series Power Supplies	Cover Assembly
XP Power ECM40US07	1	5.7 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	85 %	7 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	cUL
XP Power ECM40US24	1	1.7 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	80 %	24 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	CB CE

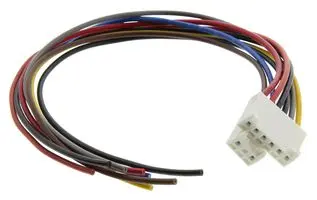

XP Power ECM40/60DT LOOM																							ECM Series Power Supplies	Cable Assembly

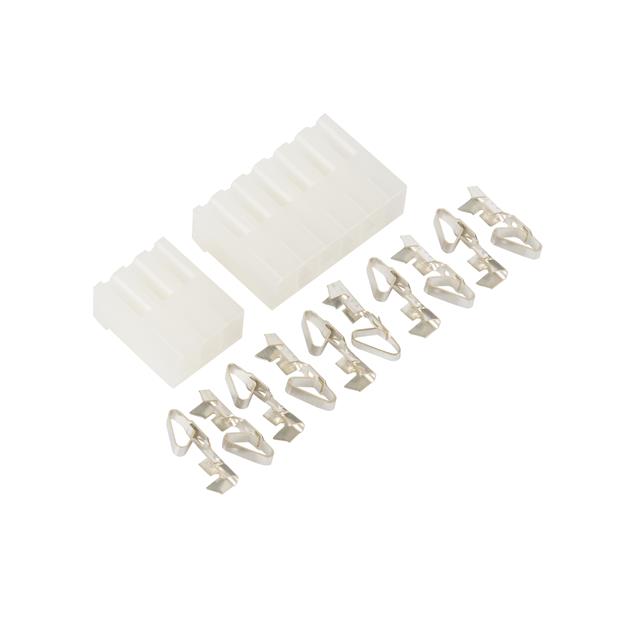

XP Power ECM40/60 CONKIT																							ECM Series Power Supplies	Connector Kit
XP Power ECM40UT32	3	6 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	85 %	5 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	cUL			-12 V	24 V	1 A	500 mA
XP Power ECM40US15	1	2.7 A	62368-1	70 °C	0 °C	40 W	ITE (Commercial) Medical	264 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	80 %	15 V	1.2 "	50.8 mm	101.6 mm	2 in	4 "	30.5 mm	Chassis Mount	4000 V	CB CE
