SB1/3/5/8 Series

Catalog

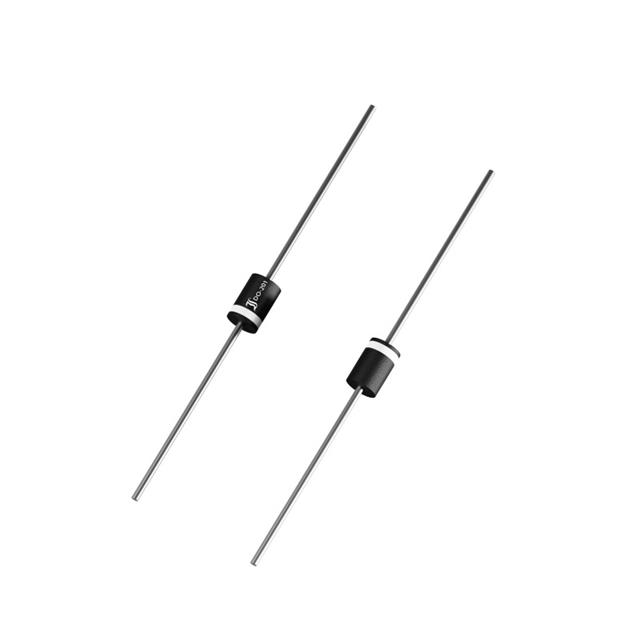

SCHOTTKY DIODES & RECTIFIERS SCHOTTKY, DO-201, 40V, 12A

Part	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If
Diotec Semiconductor SB1240-3G	200 mA 500 ns	Axial DO-201AA DO-27	40 V	Through Hole	200 µA	DO-201	Schottky	150 °C	-50 °C	550 mV	12 A
Diotec Semiconductor SB140	200 mA 500 ns	Axial DO-15 DO-204AC	40 V	Through Hole	500 µA	DO-204AC (DO-15)	Schottky	150 °C	-50 °C	500 mV	1 A
Diotec Semiconductor SB330	200 mA 500 ns	Axial DO-201AA DO-27	30 V	Through Hole	500 µA	DO-201	Schottky	150 °C	-50 °C	490 mV	3 A
Diotec Semiconductor SB390	200 mA 500 ns	Axial DO-201AA DO-27		Through Hole	600 µA	DO-201	Schottky	150 °C	-50 °C	780 mV	3 A
Diotec Semiconductor SB1100	200 mA 500 ns	Axial DO-15 DO-204AC	100 V	Through Hole	500 µA	DO-204AC (DO-15)	Schottky	150 °C	-50 °C	790 mV	1 A
Diotec Semiconductor SB5100	200 mA 500 ns	Axial DO-201AA DO-27	100 V	Through Hole	500 µA	DO-201	Schottky	150 °C	-50 °C	790 mV	5 A
Diotec Semiconductor SB320	200 mA 500 ns	Axial DO-201AA DO-27	20 V	Through Hole	500 µA	DO-201	Schottky	150 °C	-50 °C	490 mV	3 A
Diotec Semiconductor SB230	200 mA 500 ns	Axial DO-15 DO-204AC	30 V	Through Hole	500 µA	DO-204AC (DO-15)	Schottky	150 °C	-50 °C		2 A	500 mV
Diotec Semiconductor SB1100S	200 mA 500 ns	Axial DO-204AC DO-41	100 V	Through Hole	1 mA	DO-204AC (DO-41)	Schottky	150 °C	-50 °C	850 mV	1 A
