3FS Series

Manufacturer: Tamura

Catalog

POWER TRANSFORMERS THROUGH HOLE 1.1VA

Part	Height - Seated (Max) [Max] [z]	Mounting Type	Voltage - Isolation	Power - Max [Max]	Primary Winding(s)	Voltage - Secondary (Full Load)	Type	Current - Output (Max)	Secondary Winding(s)	Termination Style	Voltage - Primary	Size / Dimension [x]	Size / Dimension [y]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Height - Seated (Max) [Max]	Current - Output (Max) [custom]	Current - Output (Max) [custom]

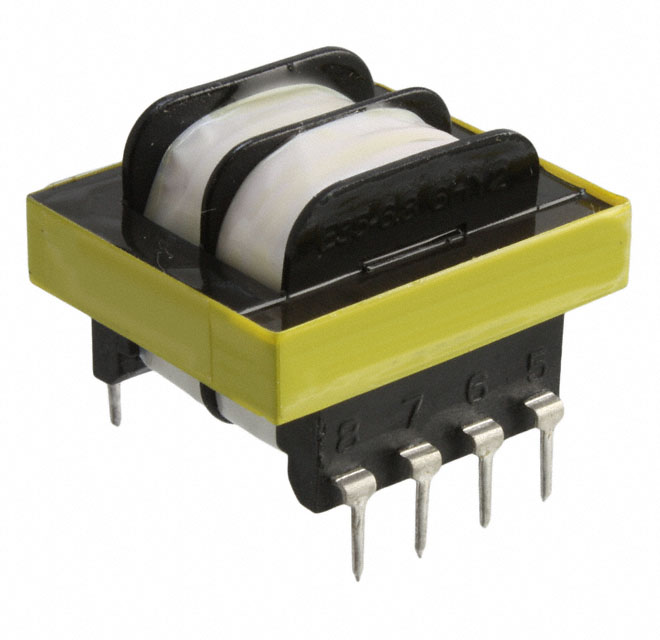

Tamura 3FS-216	25.4 mm	Through Hole	2500 Vrms	1.1 VA	Single	8 V 16 V	Laminated Core	70 mA 140 mA	Dual	PC Pin	115 V	35.56 mm	31 mm
Tamura 3FS-320	32.1 mm	Through Hole	2500 Vrms	2.4 VA	Single		Laminated Core		Dual	PC Pin	115 V	35.56 mm	31 mm	10 V	20 V
Tamura 3FS-412		Through Hole	2500 Vrms	6 VA	Single	6.3 V 12.6 V	Laminated Core	1 A 500 mA	Dual	PC Pin	115 V	41.5 mm	34.83 mm			34.55 mm
Tamura 3FS-224	25.4 mm	Through Hole	2500 Vrms	1.1 VA	Single		Laminated Core		Dual	PC Pin	115 V	35.56 mm	31 mm	12 V	24 V		45 mA	90 mA
Tamura 3FS-248	25.4 mm	Through Hole	2500 Vrms	1.1 VA	Single	24 V 48 V	Laminated Core		Dual	PC Pin	115 V	35.56 mm	31 mm				23 mA	46 mA
