H8553VB Series

Catalog

SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 15A 277VAC 372.85VA

Part	Switch Function	Termination Style	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Actuator Type	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Voltage Rating - AC	Approval Agency	Mounting Type	Color - Actuator/Cap	Circuit	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]
BULGIN LIMITED H8553VBBG3-B	On-Off	Quick Connect	250 VAC	No Marking	15 A	12.9 mm	19.3 mm	Antimicrobial	Concave (Curved) - Illuminated	Neon	Green	250 V	CSA UL	Panel Mount Snap-In	Green	DPST
BULGIN LIMITED H8553VBNAO	On-Off	Quick Connect			15 A				Concave (Curved)			250 V	CSA UL	Panel Mount Snap-In		DPST
BULGIN LIMITED H8553VBBA3-551W-B	On-Off	Quick Connect	250 VAC	O -	15 A	12.9 mm	19.3 mm	Antimicrobial	Concave (Curved) - Illuminated			250 V	CSA UL	Panel Mount Snap-In	Amber	DPST	Neon Amber

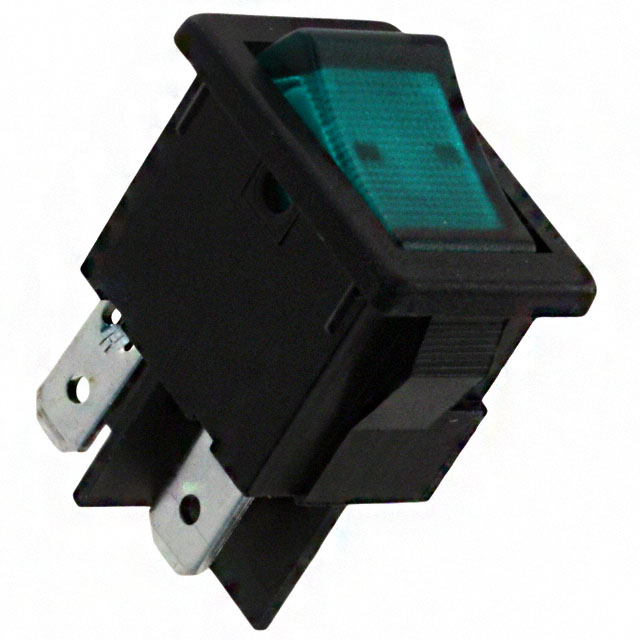

BULGIN LIMITED H8553VBBG3	On-Off	Quick Connect	250 VAC	No Marking	15 A	12.9 mm	19.3 mm		Concave (Curved) - Illuminated	Neon	Green	250 V	CSA UL	Panel Mount Snap-In	Green	DPST
BULGIN LIMITED H8553VBBR3-551W	On-Off	Quick Connect	250 VAC	O -	15 A	12.9 mm	19.3 mm		Concave (Curved) - Illuminated			250 V	CSA UL	Panel Mount Snap-In	Red	DPST	Neon Red
BULGIN LIMITED H8553VBBG2-626W

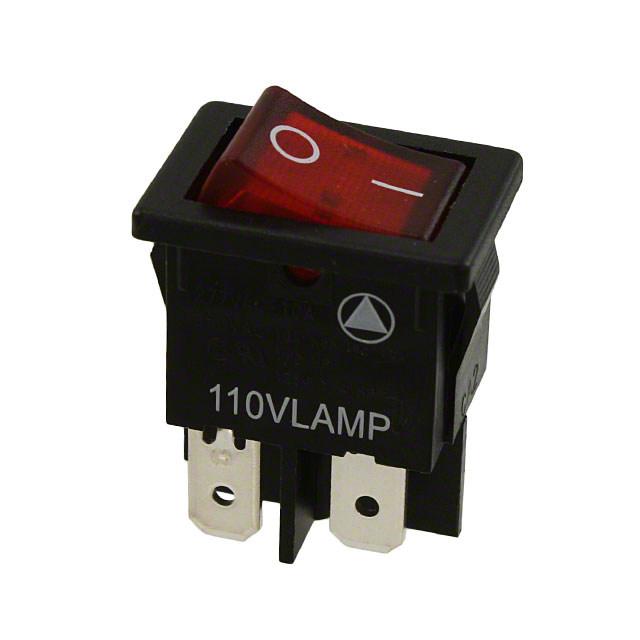

BULGIN LIMITED H8553VBBR2-551W-B	On-Off	Quick Connect	125 VAC	O -	15 A	12.9 mm	19.3 mm	Antimicrobial	Concave (Curved) - Illuminated			250 V	CSA UL	Panel Mount Snap-In	Red	DPST	Neon Red

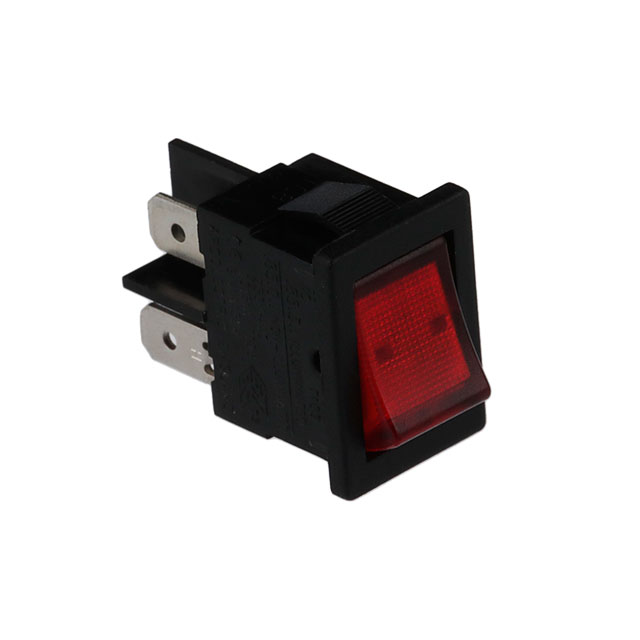

BULGIN LIMITED H8553VBNAF	On-Off	Quick Connect			15 A				Concave (Curved)			250 V	CSA UL	Panel Mount Snap-In		DPST
BULGIN LIMITED H8553VBBR2-551W	On-Off	Quick Connect	125 VAC	O -	15 A	12.9 mm	19.3 mm		Concave (Curved) - Illuminated			250 V	CSA UL	Panel Mount Snap-In	Red	DPST	Neon Red

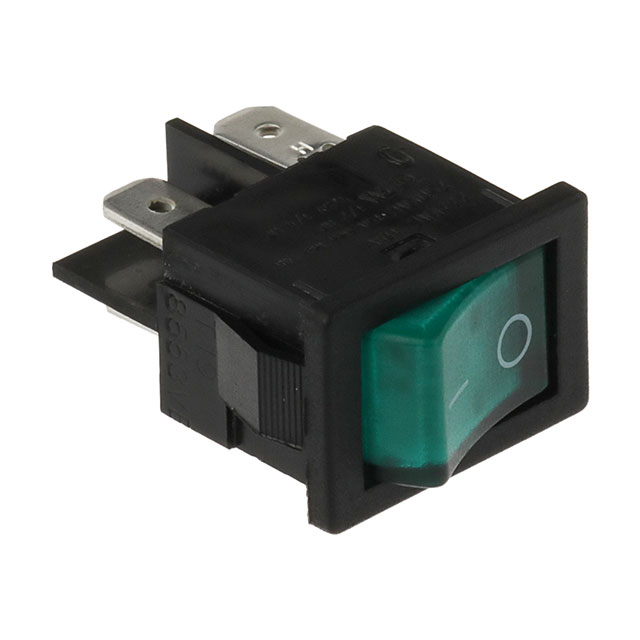

BULGIN LIMITED H8553VBNAC	Off-On	Quick Connect		O I	15 A	12.9 mm	19.3 mm		Concave (Curved)			250 V	CSA UL	Panel Mount Snap-In	Amber	SPST		0 °C	105 ░C
