1926720 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
ASSYMINIPAKHDL6P15S6PRAPLUGBRDLOCK
| Part | Color | Features | Current Rating (Amps) | Mounting Type | Termination | Number of Positions Loaded | Voltage Rating | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

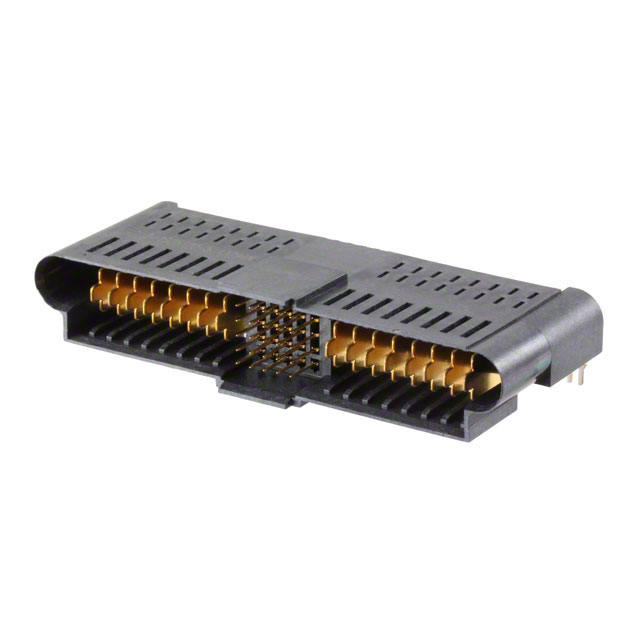

 TE Connectivity Raychem Cable Protection | Black | Board Lock Mating Guide | 16 A | Board Edge Right Angle Through Hole | Press-Fit | All | 250 VDC | 15 | 12 | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | Gold Gold-Palladium | 27 | 125 °C | -40 °C | Header Male Pins and Blades | UL94 V-0 |

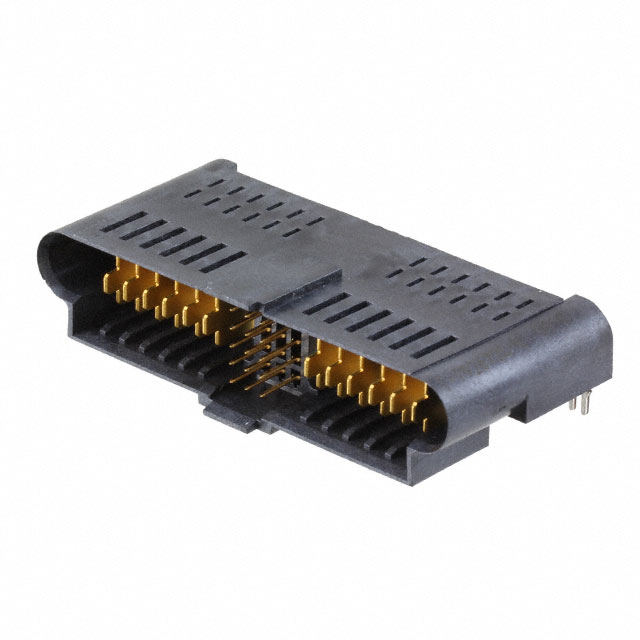

 TE Connectivity Raychem Cable Protection | Black | Board Lock Mating Guide | 16 A | Board Edge Right Angle Through Hole | Press-Fit | All | 250 VDC | 25 | 16 | 0.76 Ám | 30 Áin | 0.079 in | 2 mm | Gold Gold-Palladium | 41 | 125 °C | -40 °C | Header Male Pins and Blades | UL94 V-0 |
