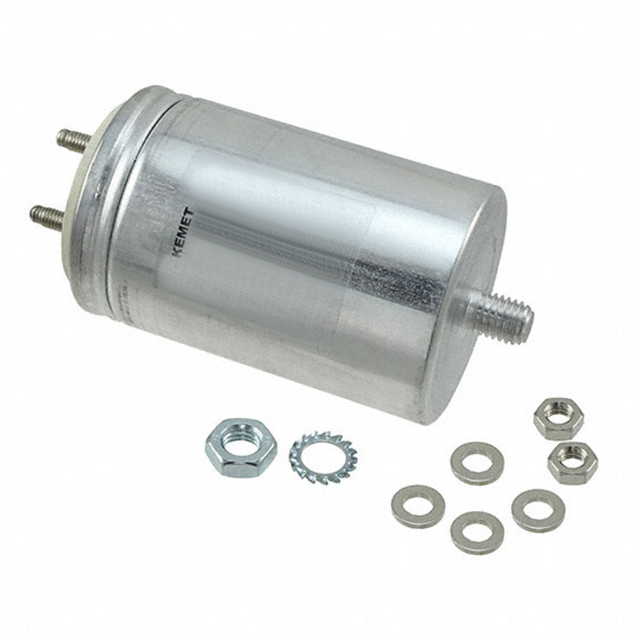

C44HKG Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 100UF 5% 1KVDC RADIAL
| Part | Lead Spacing | Lead Spacing | Features | Dielectric Material | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Voltage Rating - DC | Voltage Rating - DC | Capacitance | Termination | Mounting Type | Package / Case | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.378 " | 35 mm | Long Life | Polypropylene (PP) Metallized | Commutation Power Factor Correction (PFC) | 5.669 in | 144 mm | -25 °C | 70 °C | 5 % | 1 kV | 1 kVDC | 100 µF | Threaded Male | Chassis Stud Mount | Can Radial | 440 V | 2.953 in | 75 mm |
