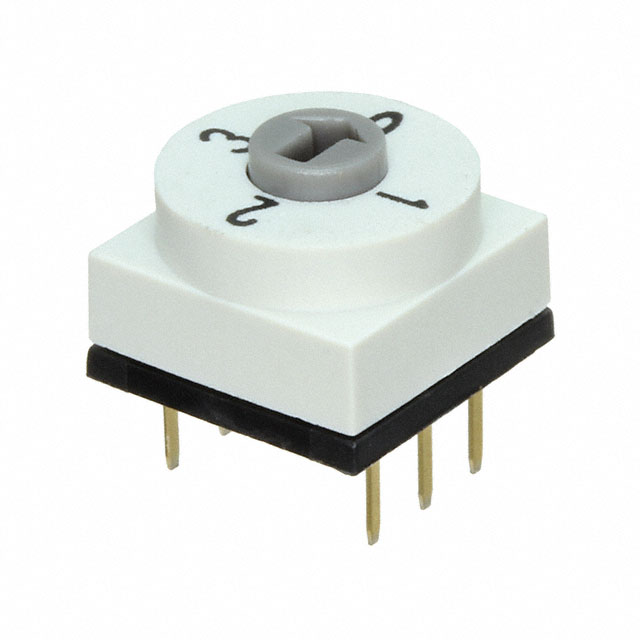

RDTDR04 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY DIP BCD 0.15A 42V
| Part | Length [x] | Length [x] | Electrical Life | Mechanical Life | Actuator Level | Circuit | Height Above Board [z] | Height Above Board | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Actuator Type | Termination Style | Contact Finish | Mounting Type | Voltage Rating | Pitch | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.394 in | 10 mm | 10000 Cycles | 10000 Steps | Raised | BCD | 0.295 in | 7.5 mm | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 4 | Rotary for Tool | PC Pin | Gold | Through Hole | 42 VDC | 2.54 mm | 0.1 " |
