3609 Series
Manufacturer: 3M Electronic Specialty

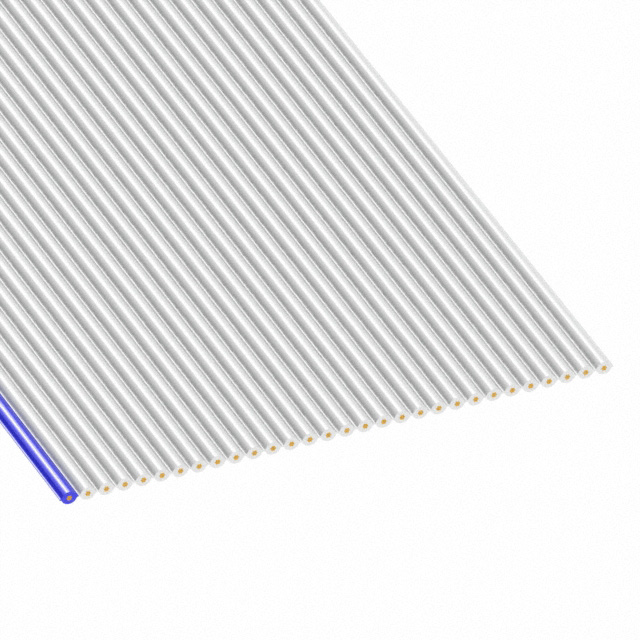

CBL RIBN 30COND 0.025 WHITE
| Part | First Conductor Mark | Insulation Resistance | Conductor Material | Wire Gauge | Ratings | Number of Conductors | Ribbon Thickness | Ribbon Thickness | Jacket (Insulation) Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Shielding | Pitch | Pitch | Jacket Color | Ribbon Width [custom] | Ribbon Width [custom] | Number of Conductors [custom] | Length [x] | Length [x] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 30 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 100 ' | 30.48 m | Unshielded | 0.64 mm | 0.025 in | White | ||||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 100 ' | 30.48 m | Unshielded | 0.64 mm | 0.025 in | White | 0.25 in | 6.35 mm | 10 | ||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 12 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 1 ft 25 ft 100 ' | 7.62 m 30.48 m 304.8 mm | Unshielded | 0.64 mm | 0.025 in | White | 50 ft | 15.24 m | ||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 20 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 1 ft 10 ft 25 ft 100 ' | 3.05 m 7.62 m 30.48 m 304.8 mm | Unshielded | 0.64 mm | 0.025 in | White | 0.5 in | 12.7 mm | 30.48 m | 100 ft | Enter Number of Feet in Order Quantity | |||

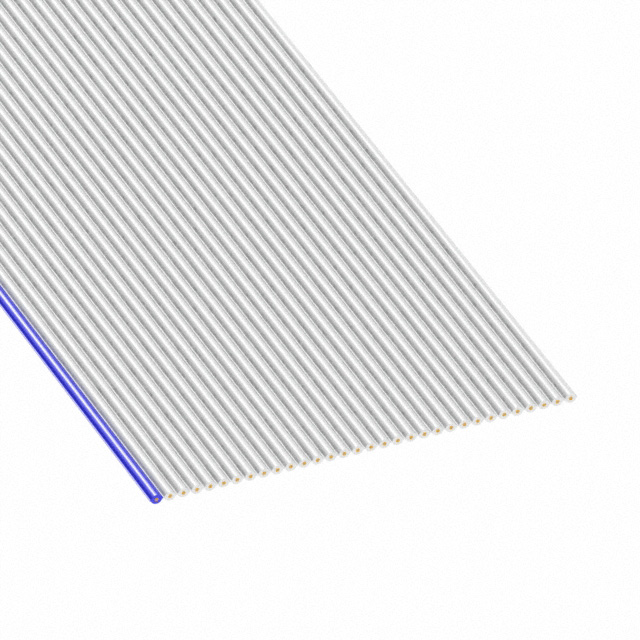

3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 32 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 100 ' | 30.48 m | Unshielded | 0.64 mm | 0.025 in | White | ||||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 26 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 155 C | 1 ft 25 ft 100 ' | 7.62 m 30.48 m 304.8 mm | Unshielded | 0.64 mm | 0.025 in | White | 0.65 in | 16.51 mm | 50 ft | 15.24 m | ||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 40 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 100 ' | 30.48 m | Unshielded | 0.64 mm | 0.025 in | White | 1 in | 25.4 mm | ||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 60 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 100 ' | 30.48 m | Unshielded | 0.64 mm | 0.025 in | White | 1.5 in | 38.1 mm | ||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | 14 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | Unshielded | 0.64 mm | 0.025 in | White | 0.35 in | 8.89 mm | |||||||||
3M Electronic Specialty | Blue | 10 GOhm | Copper Silver Coated | 30 AWG | UL Style 20726 | 68 | 0.61 mm | 0.024 in | Fluorinated Ethylene-Propylene (FEP) | 150 V | 38 AWG | 7 Strands | Flat Cable | -55 C | 150 °C | 1 ft 25 ft 100 ' | 7.62 m 30.48 m 304.8 mm | Unshielded | 0.64 mm | 0.025 in | White | 1.7 in | 43.18 mm | 50 ft | 15.24 m | Enter Number of Feet in Order Quantity |
