3SE5242 Series

Manufacturer: Siemens

Catalog

SWITCH LIMIT DPST 6A 120V PLNGR

Part	Circuit	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Mounting Type	Termination Style	Electrical Life	Operating Force	Switch Function	Current Rating (Amps)
Siemens 3SE52420FC05	DPST-NO/NC	24 V	120 V	IP66 IP67	85 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	3 A 6 A
Siemens 3SE52420PC05	3PST-2NO/1NC	24 V	120 V	IP66 IP67	85 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	3 A 6 A
Siemens 3SE52420KC05	3PST-2NC/1NO	24 V	120 V	IP66 IP67	85 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	3 A 6 A
Siemens 3SE52423LC05	3PST-2NC/1NO		230 V	IP66 IP67	60 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	6 A

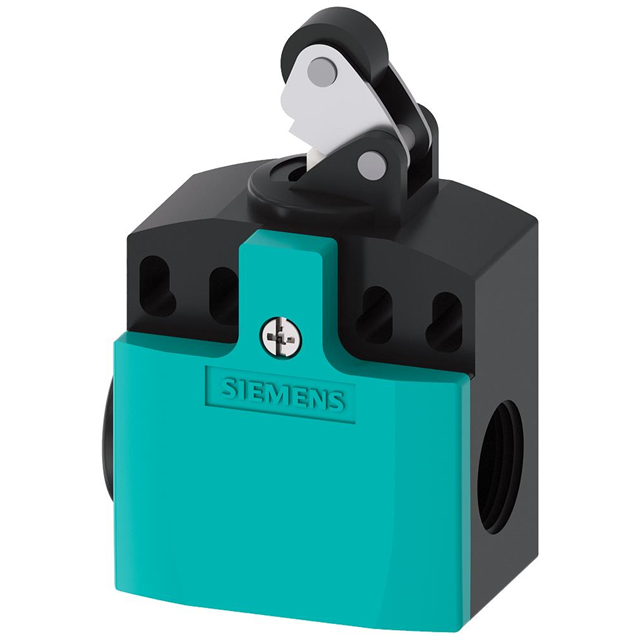

Siemens 3SE52420LE10	3PST-2NC/1NO	24 V	120 V	IP66 IP67	85 °C	-25 °C	Roller Top Rotary	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	1020 gf	Off-Mom On-Mom	3 A 6 A

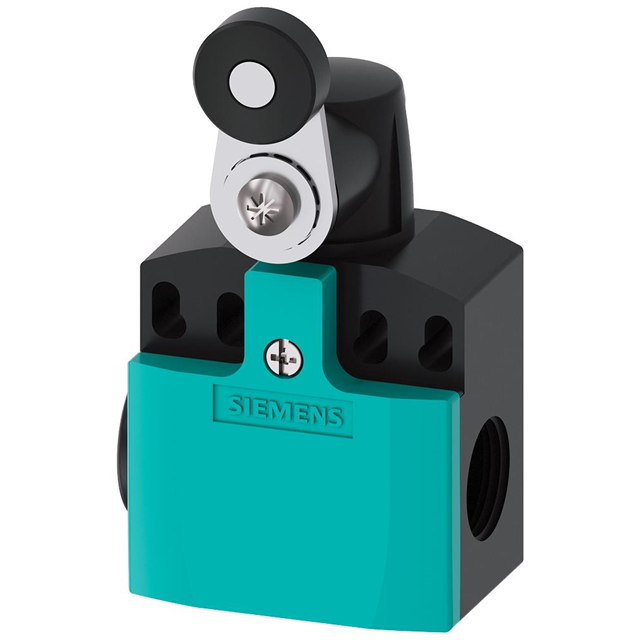

Siemens 3SE52420LK21	3PST-2NC/1NO	24 V	120 V	IP66 IP67	85 °C	-25 °C	Roller Side Rotary	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles		Off-Mom On-Mom	3 A 6 A
Siemens 3SE52420MC05	3PST-2NC/1NO	24 V	120 V	IP66 IP67	85 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	3 A 6 A
Siemens 3SE52423KC05	3PST-2NC/1NO		230 V	IP66 IP67	60 °C	-25 °C	Round (Pin Plunger)	15000000 Cycles	Chassis Mount	Screw Terminal	100000 Cycles	2039 gf	Off-Mom On-Mom	6 A
