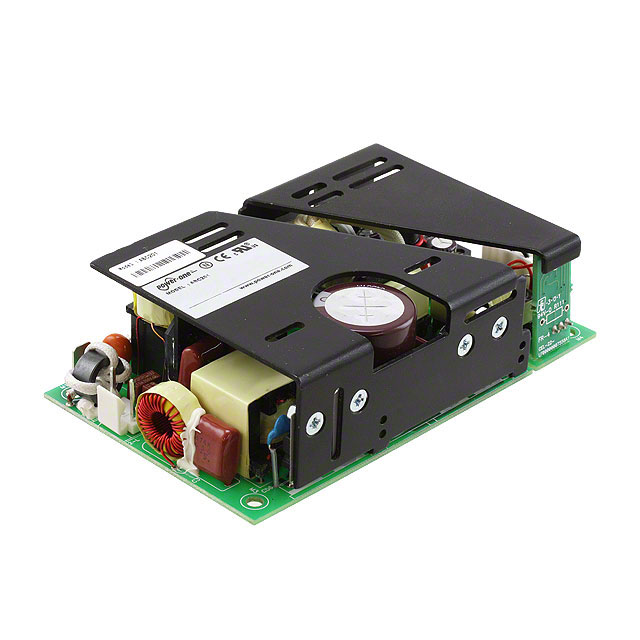

ABC201 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
SWITCHING POWER SUPPLIES 200W 30V 5.33A SCREW TERMINAL
| Part | Minimum Load Required | Current - Output 1 | Voltage - Output 1 | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Voltage - Isolation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Type | Approval Agency | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 5.33 A | 30 V | Chassis Mount | 264 VAC | 90 VAC | ITE (Commercial) | 4.242 kV | 160 W 200 W | 70 °C | -20 °C | 1 | Open Frame | CE | Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm | |
Bel Fuse Inc. | 26 A | 5 V | Chassis Mount | 264 VAC | 90 VAC | ITE (Commercial) | 4.242 kV | 160 W 200 W | 70 °C | -20 °C | 1 | Open Frame | CE | Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm | |
 Bel Fuse Inc. | 3.33 A | 48 V | Chassis Mount | 264 VAC | 90 VAC | ITE (Commercial) | 4.242 kV | 160 W 200 W | 70 °C | -20 °C | 1 | Open Frame | CE | Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm | |
Bel Fuse Inc. | 10.66 A | 15 V | Chassis Mount | 264 VAC | 90 VAC | ITE (Commercial) | 4.242 kV | 160 W 200 W | 70 °C | -20 °C | 1 | Open Frame | CE | Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input | 76.2 mm | 127 mm | 1.5 in | 3 " | 5 " | 38.1 mm |
