737-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 50POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Read Out	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Rows [custom]	Number of Positions/Bay/Row	Mounting Type	Gender	Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Card Type

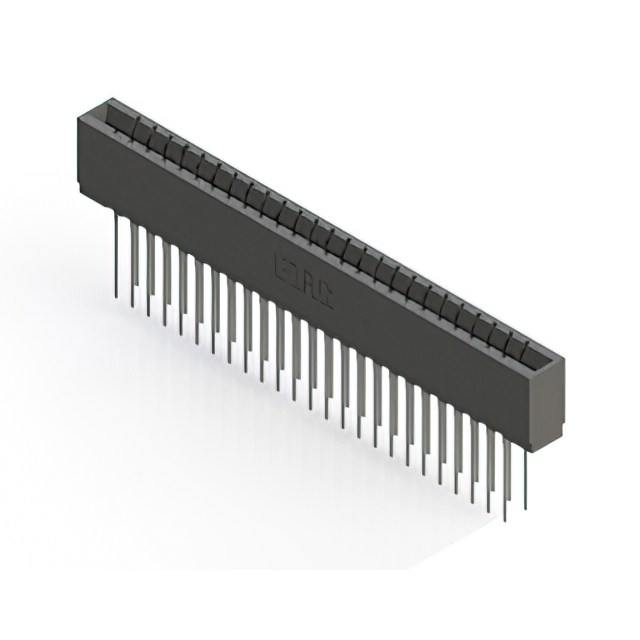

EDAC Inc. 737-050-541-201	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-522-206	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-560-201	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	25	Through Hole	Female	Cantilever Make Before Break	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-560-206	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	25	Through Hole	Female	Cantilever Make Before Break	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-522-201	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-525-206	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-540-206	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
EDAC Inc. 737-050-541-206	Polyester Thermoplastic	2	Dual	50	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	25	Through Hole	Female	Cantilever	3.96 mm	0.156 in	-40 C	105 ░C	Black	Copper Alloy	30 Áin	0.76 Ám	Gold	Non Specified - Dual Edge
